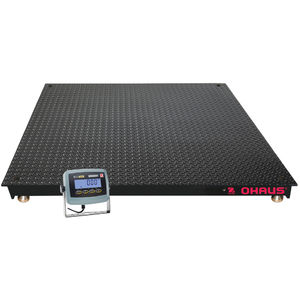

The durable VN is constructed of an epoxy painted steel frame, an ABS T31P indicator, NEMA 4X/IP65 sealed stainless steel junction box and IP67 sealed load cells.
With a rechargeable lead acid battery included with each VN, position the floor scale freely in the workspace without having to be forced to work near an outlet.
Painted steel ramps are available to be added to any VN platform, which provide bottom support ribs that prevent the platform from bending under heavy loads.
Product Specifications
Maximum Capacity
2,200 kg (5,000 lb)
Readability
0.5 kg (1 lb)
Readability (Certified)
0.5 kg (1 lb)
Platform Size (Width)
1,524 mm (5 ft)
Platform Size (Length)
1,524 mm (5 ft)
Dimensions (Length)
1,524 mm (5 ft)
Dimensions (Width)
1,524 mm (5 ft)
Dimensions (Height)
90 mm (3.5 in)
Battery Life
100 Hours with Rechargeable Battery
Communication
RS232 (Included)
Display
LCD with white LED backlight
Legal for Trade
NTEP Certified
Net Weight
190 kg (419 lb)
Outputs
Not applicable
Platform Construction
Painted Steel Diamond Plate
Power
Rechargeable Battery (Included);
AC Adapter (Included)
