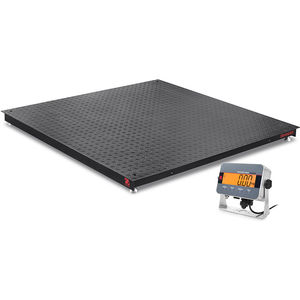

Painted carbon steel treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.
Product Specifications
Maximum Capacity
1,250 kg (2,500 lb)
Readability
0.2 kg (0.5 lb)
Readability (Certified)
0.5 kg (0.5 lb)
Platform Size (Width)
1,219 mm (4 ft)
Platform Size (Length)
1,219 mm (4 ft)
Dimensions (Length)
1,219 mm (4 ft)
Dimensions (Width)
1,219 mm (4 ft)
Dimensions (Height)
90 mm (3.5 in)
Battery Life
30 Hours with Rechargeable Battery;
100 Hours with Disposable Batteries
Communication
Ethernet (Available as an Accessory);
RS232 (Included);
USB (Available as an Accessory)
Display
7 Segment LCD with multicolor backlight
Legal for Trade
NTEP Certified
Net Weight
122 kg (269 lb)
Outputs
Not Applicable
Platform Construction
Painted Steel Diamond Plate
Power
6 C (LR14) Batteries (Not Included);
Rechargeable Battery (Not Included);
AC Power (Included)
