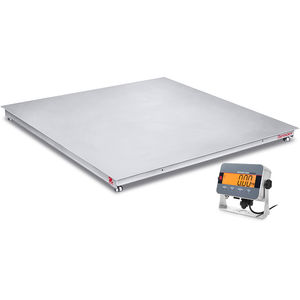

Floor Scales for Basic Industrial Applications
304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft and 4x4 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.
Product Specifications
| Maximum Capacity | 1,250 kg (2,500 lb) |
| Readability | 0.2 kg (0.5 lb) |
| Readability (Certified) | 0.5 kg (0.5 lb) |
| Platform Size (Width) | 914 mm (3 ft) |
| Platform Size (Length) | 914 mm (3 ft) |
| Dimensions (Length) | 914 mm (3 ft) |
| Dimensions (Width) | 914 mm (3 ft) |
| Dimensions (Height) | 90 mm (3.5 in) |
| Battery Life | 30 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Display | 7 Segment LCD with multicolor backlight |
| Legal for Trade | NTEP Certified |
| Net Weight | 98 kg (216 lb) |
| Outputs | Not Applicable |
| Platform Construction | Stainless Steel |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Protection Rating | IP66; IP68 Platform |
| Setup | Yes |
| Tare Range | To capacity by subtraction |
| Test Weight | 2500lb, OIML M1 or ASTM CL F |
| Units of Measurement | Metric Tons; Kilogram; Pound |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing |
| Key Features | Indicator Platform Separated; Battery; LFT; Printer |
| Main Purpose | Wet Area Products; Check Weighing; Data Communication; Counting |
| Market Worlds | Industrial |
| Product will be used | On the Floor; Work in Industrial; In Wet; Outdoor |
| Typical Areas | logistics and general high capacity weighing where the environment may be wet; In shipping |
- Dimensions NA Inch x NA Inch x NA Inch
