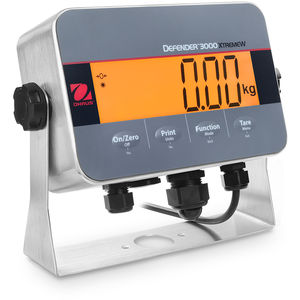

Indicator i-DT33XW AM 30659311

Indicator i-DT33XW AM 30659311
As low as $635.77CAD
IN STOCK Model: MLS-30659311 Delivery Time: 1-3 Weeks

Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when it is within the target weight range.
Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
Indicator features an IP66 protected 304-stainless steel housing with bracket. Display resolution up to 1:30,000; OIML approved resolution 1:10,000; NTEP and Measurement Canada approved to 1:6,000.

Product Specifications

Resolution 30,000
Resolution (Certified) 6,000
Battery Life 100 Hours with Rechargeable Battery
Outputs Not applicable
Second Scale Input Not applicable
Protection Rating IP66
Dimensions (Length) 256 mm (10.1 in)
Dimensions (Width) 74 mm (2.9 in)
Dimensions (Height) 204 mm (8 in)
Communication Ethernet (Available as an Accessory);
RS232 (Included);
USB (Available as an Accessory)
Display 7 Segment LCD with multicolor backlight
Legal for Trade NTEP Certified;
Measurement Canada Approved
Main Purpose Check Weighing;
Data Communication;
Counting
Net Weight 3 kg (6.6 lb)
Tare Range To capacity by subtraction
Units of Measurement Gram;
Kilogram;
Pound;
Ounce;
Pound:Ounce
Working Environment -10°C – 40°C, 85%RH, non-condensing
Working Environment 14°F – 104°F, 85%RH, non-condensing
  • Weight 7.5 Kg
  • Dimensions 11.8 Inch x 10.4 Inch x 5.3 Inch
