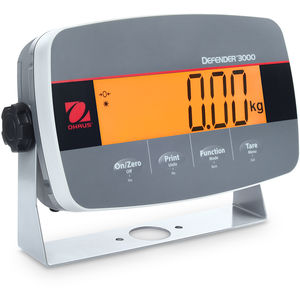

ABS Plastic Indicator for Basic Industrial Applications
Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when it is within the target weight range.
Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
Indicator features a durable ABS housing and steel mounting bracket. Display resolution up to 1:30,000; OIML approved resolution 1:10,000; NTEP and Measurement Canada approved to 1:6,000.
Product Specifications
Resolution
30,000
Resolution (Certified)
6,000
Battery Life
100 Hours with Rechargeable Battery;
360 Hours with Disposable Batteries
Outputs
Not applicable
Second Scale Input
Not applicable
Protection Rating
Not applicable
Dimensions (Length)
251.6 mm (9.9 in)
Dimensions (Width)
81 mm (3.2 in)
Dimensions (Height)
177 mm (7 in)
Communication
Ethernet (Available as an Accessory);
RS232 (Included);
USB (Available as an Accessory)
Display
7 Segment LCD with multicolor backlight
Legal for Trade
NTEP Certified;
Measurement Canada Approved
Main Purpose
Data Communication;
Check Weighing;
Counting
Net Weight
1.3 kg (2.9 lb)
Power
6 C (LR14) Batteries (Not Included);
Rechargeable Battery (Not Included);
AC Power (Included)
