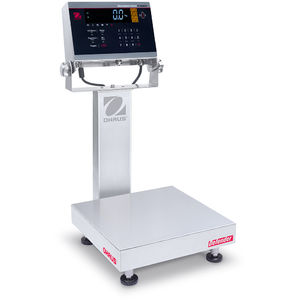

Defender 6000 indicator, constructed of 316 stainless steel stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K washdown protection.
White LED displays clear results for fast processing. The indicator’s configurable color bar matrix allows for detailed package weight checking to ensure compliance.
Durably constructed with a 304 stainless steel platform, frame, IP67 loadcell, Defender 6000 hybrid meets NTEP/Measurement Canada approvals.
Product Specifications
| Maximum Capacity | 12.5 kg (25 lb) |
| Readability | 0.5 g (0.001 lb) |
| Readability (Certified) | 5 g (0.005 lb) |
| Platform Size (Width) | 305 mm (12 in) |
| Platform Size (Length) | 305 mm (12 in) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Battery Life | Not Applicable |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions (Length) | 442 mm (17.4 in) |
| Dimensions (Width) | 305 mm (12 in) |
| Dimensions (Height) | 617 mm (24.3 in) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Net Weight | 12 kg (26.5 lb) |
| Outputs | 4-20 mA; 0–10V; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | IP69k; IP68 |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Test Weight | 12kg, OIML M1 or ASTM CL4 |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing |
| Working Environment | -10°C – 40°C, 80%RH, non-condensing |
| Key Features | Quick and easy to configure; GLPGMP; Indicator Platform Separated; LFT; Printer; WIFI connection |
| Main Purpose | Wet Area Products; Legal for Trade; Filling; Percent Weighing; Check Weighing; Data Communication; Counting |
| Market Worlds | Industrial; Food |
| Product will be used | On a Table; On the Floor; Work in Industrial; In Wet |
| Typical Areas | In advanced Checkweighing applications; In general weighing and food preparation where food certification is required; In general weighing and wet environments; In food processing and preparation where environment may be wet; environment may be wet or more industrial; In pharmaceutical production |
- Weight 30.9 Kg
- Dimensions 18.9 Inch x 17.5 Inch x 14.3 Inch
