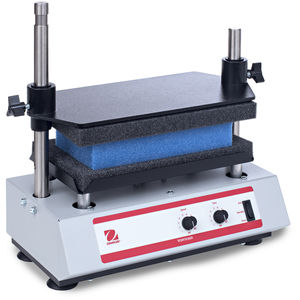

Powerful Hands-Free Vortex Mixer for Efficient High-Throughput Mixing
Easily process up to 50 samples at one time - the Multi-Tube Vortex Mixer can be customized for your application with six different tube racks and a post- extension kit.
The Multi-Tube Vortex Mixers feature either an easy-to-clean one-piece stainless steel housing that is perfect for clean rooms, or a painted steel version for a more economical option.
For challenging samples, enhance vortex action & create a more vigorous mix with the programmable pulse mode on the digital models. Adjust the pulse-on/pulse-off time interval to customize operation.
Product Specifications
Control
Analog
Duty Rating
Continuous
Orbit
3.6 mm (0.1 in)
Speed Range
1200 rpm – 2400 rpm
Capacity
4.5 kg
Dimensions (Height)
406 mm (16 in)
Dimensions (Length)
241 mm (9.5 in)
Dimensions (Width)
384 mm (15.1 in)
Net Weight
18.7 kg (41 lb)
Power
120V, 5A, 50/60Hz
Power Consumption
100 W
Safety Certification
TUV
Tray Size (Length)
184 mm (7.25 in)
Tray Size (Width)
311 mm (12.25 in)
Timer
Not Applicable
Working Environment
4 - 40°C, 20% to 80% RH, non-condensing
Working Environment
39 - 104°F, 20% to 80% RH, non-condensing
Weight 42.11 Kg
Dimensions 9.488188976 Inch x 15.11811024 Inch x 15.98425197 Inch
