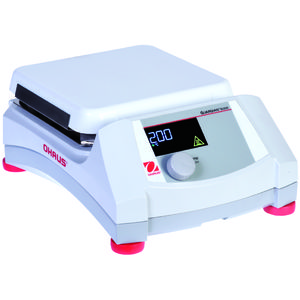

Reliable Digital Hotplate Stirrers with Exceptional Safety Features for Everyday Use
SafetyHeat™ protects the lab - an industry-leading early detection system uses two independent safety controls to monitor the electronics and stop heating before an overtemperature condition occurs
Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator – all designed to quickly and easily monitor performance from across the lab.
Product Specifications
Function
Heating
Capacity
15 L
Plate Construction
Ceramic
Plate Size (Width)
178 mm (7 in)
Plate Size (Length)
178 mm (7 in)
Temp. Range
Ambient +5°C – 500°C
Control
Digital
Dimensions (Length)
309 mm (12.2 in)
Dimensions (Width)
223 mm (8.8 in)
Dimensions (Height)
122 mm (4.8 in)
Calibration
Temperature Calibration 3 Plate/3 Probe
Display
Custom Back-lit LCD
Inuse cover
Available as an Accessory
Net Weight
2.6 kg (5.7 lb)
Power
120V, 10A, 50/60Hz
Power Consumption
1,080 W
Safety Certification
TUV
Temperature Probe
Available as an Accessory
Working Environment
5°C – 40°C, 80% RH, Non-condensing
Working Environment
41°F – 104°F, 80% RH, Non-condensing
Weight 9.6 Kg
Dimensions 5.62992126 Inch x 8.070866142 Inch x 19.88188976 Inch
