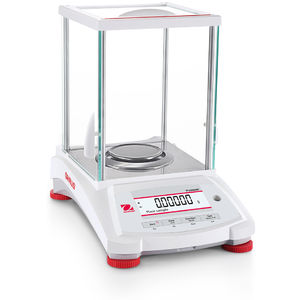

Combining Economy and High Performance for Essential Weighing
The PX5 offers high accuracy and repeatability for essential weighing applications in laboratory, industrial and education settings at an economical price point.
Featuring a cast metal lower housing, sub-pan and stainless steel weighing pan, the PX5 is durably constructed for versatile, long-term use.
Pioneer features a second line display for additional information or guidance, a static removal bar for convenient grounding, and USB connectivity.
Product Specifications
| Maximum Capacity | 82 g/220 g |
| Readability | 0.01 mg; 0.1 mg |
| Pan Size (Ø_Diameter) | 80 mm |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | Included |
| Dimensions (Length) | 321 mm |
| Dimensions (Width) | 209 mm |
| Dimensions (Height) | 309 mm |
| Battery Life | Not applicable |
| Auxiliary Display Model | Available as an Accessory |
| Communication | USB; RS232 |
| Display | 2-Line LCD with Backlight |
| Inuse cover | Included |
| Legal for Trade | No |
| Linearity ± | 0.0001 g |
| Minimum Weight | 9 mg |
| Minimum Weight (USP, 0.1%, typical) | 20 mg |
| Net Weight | 4.5 kg (10 lb) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.02 mg; 0.1 mg |
| Stabilization Time | 10 s |
| Tare Range | To capacity by subtraction |
| Test Weight | 50g, OIML E2 or ASTM CL 1 |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce |
| Working Environment | operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing |
| Working Environment | operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing |
| Key Features | GLPGMP; LFT; Printer |
| Main Purpose | Legal for Trade; Percent Weighing; Check Weighing; Data Communication; Weigh Below; Counting; Density Determination |
| Market Worlds | Education; Pharmacy; Laboratory |
| Product will be used | On a Table; Work in Industrial; Classroom |
| Typical Areas | In a laboratory; In a classroom; In a pharmacy; In a light industrial enviroment |
- Weight 15.43 Kg
- Dimensions 20.07874016 Inch x 15.35433071 Inch x 20.86614173 Inch
