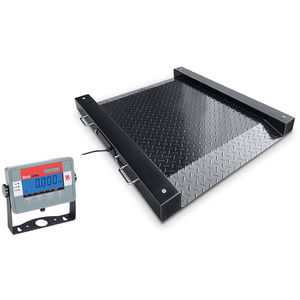

Our Drum Scales come in 5 models with platform sizes ranging from 30 x 30 to 36 x 36 inch, and capacities ranging from 500 to 2,500 lb, giving you the flexibility to choose what best suits your weighing needs.
The OHAUS Drum Scales feature a platform constructed of mild steel with an epoxy paint finish, which means that the scale can stand up to heavy industrial use.
A low-profile design with front and back access ramps that make it easy to roll pallet jacks, dollies, carts & drums on to the platform. High-density polyurethane wheels provide convenient portability.
Product Specifications
Maximum Capacity
1,250 kg (2,500 lb)
Readability
0.2 kg (0.5 lb)
Platform Size (Length)
762 mm (30 in)
Platform Size (Width)
762 mm (30 in)
Additional transport costs
Yes
Battery Life
Not Applicable
Communication
RS232 (Included)
Dimensions (Width)
962 mm (37.9 in)
Dimensions (Length)
1,024 mm (40.4 in)
Dimensions (Height)
100 mm (4 in)
Display
LCD display with white backlight
Legal for Trade
No
Net Weight
46 kg (101 lb)
Outputs
Not Applicable
Platform Construction
Painted Steel Diamond Plate
Power
AC Adapter (Included)
Protection Rating
Not Applicable
Tare Range
To capacity by subtraction
Test Weight
2500lb, OIML M1 or ASTM CL F
Units of Measurement
Gram;
Kilogram;
Pound;
Ounce;
Pound: Ounce
Working Environment
14°F – 104°F, 85%RH, non-condensing
Working Environment
-10°C – 40°C, 85%RH, non-condensing
Key Features
Indicator Platform Separated
Main Purpose
Check Weighing;
Data Communication;
Counting
Market Worlds
Industrial
Product will be used
On the floor;
Work in Industrial;
Outdoor
Typical Areas
In general weighing and basic counting;
In a light industrial enviroment;
logistics and general high capacity weighing
