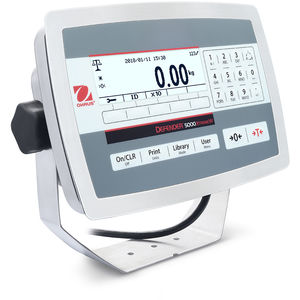

See results clearly on the large backlit display. The alphanumeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including RS232/RS485/USB device, Ethernet & Bluetooth/WiFi. Analog Output & Discrete I/O with relays.
Features common industrial modes & supports a 50,000 item library & 1,000 user profiles which can be downloaded/uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability.
Product Specifications
Resolution
75,000
Resolution (Certified)
10,000
Battery Life
20 Hours with Rechargeable Battery
Outputs
4 - 20mA;
2 In/4 Out digital I/O
Second Scale Input
Not applicable
Protection Rating
IP68
Dimensions (Length)
270 mm (10.6 in)
Dimensions (Width)
76 mm (3 in)
Dimensions (Height)
222 mm (8.7 in)
Communication
Ethernet (Available as an Accessory);
2nd RS232/RS485/USB (available as an accessory);
RS232 (Included);
USB Host (Available as an Accessory);
WiFi/Bluetooth (available as an accessory)
Display
Dot matrix LCD with white LED backlight
Legal for Trade
NTEP Certified;
Measurement Canada Approved
Net Weight
2 kg (4.4 lb)
Power
Rechargeable Battery (Not Included);
AC Power (Included)
