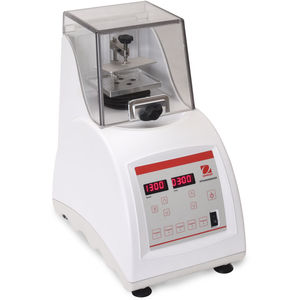

Provides Simple and Powerful Solutions for Rapid High-Throughput Grinding
For high performance grinding, the HT Lysing Homogenizer is one of the most flexible models on the market. The built-in adjustable holder allows for easy processing of samples - no accessories needed.
This versatile Homogenizer allows high throughput grinding, and is ideal for processing multiple tubes, microplates, deep-well plates, or any sample container that fits in the 10.2x12.7x6.4 cm holder.
Take the guesswork out of sample preparation. Five preset programs optimized for speed and time to process the most common samples, including bacteria, fungi, plant, and animal tissue easily.
Product Specifications
Speed Range
300 rpm – 1600 rpm
Motion
Vertical, 31 mm
Capacity
1 Deep Well, 4 Microplates or any sample to 10.2 x 12.7 x 6.4 cm
Timer
1 second – 10 minutes
Programs
5 Preset Programs
Maximum Capacity
300 g (0.7 lb)
Control
Digital
Dimensions (Height)
518 mm (20.5 in)
Dimensions (Length)
443 mm (17.5 in)
Dimensions (Width)
288 mm (11.5 in)
Net Weight
26.8 kg (59 lb)
Power
120V, 6.3A, 50/60Hz
Power Consumption
450 W
Safety Certification
TUV
Tray Size (Length)
10.2 cm (4 in)
Tray Size (Width)
12.7 cm (5 in)
Working Environment
5°C – 40°C, 85%RH, non-condensing
Working Environment
40°F – 104°F, 20% – 85%RH, non-condensing
Weight 83.78 Kg
Dimensions 24.01574803 Inch x 32.00787402 Inch x 35.03937008 Inch
