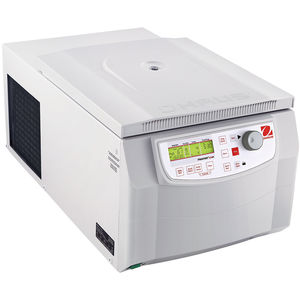

Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories.
The intuitive design of the centrifuges and accessories enables easy access to parameter settings and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
The performance of these centrifuges is propelled by German engineering and high quality components for reliable use. Constructed from chemical-resistant stainless steel to ensure durability in lab use.
Product Specifications
Maximum Capacity(Rotor)
4 x 100 ml
Maximum Relative Centrifuge Force (x g)
23,542 g
Net Weight
60 kg (132 lb)
Program memories
99
Refrigeration Range
-20 °C (-4 °F );
40 °C ( 104 °F)
Speed Range
200 rpm ;
18,000 rpm
Rotor In Package
Not applicable
Acceleration Gear
10
Deceleration Gear
10
Dimensions (Length)
731 mm (28.78 in)
Dimensions (Width)
407 mm (16.02 in)
Dimensions (Height)
359 mm (14.13 in)
Lid lock
Motor driven
Safety Certification
CE;
FCC
Power Consumption
660 W
Display
LCD with backlight
Noise Level
≤60±2 dB(A)
Power
AC Power (Included)
Pre-cool time
From room temperature to 4℃ ＜ 10min
Rotor Compatibility
Angle 4 x 85ml RB ID Hi;
Angle 12 x 15 ml RB/FA ID;
Angle 24 x 1.5 / 2.0 ml ID Sealable;
Angle 6 x 50 ml RB ID Hi;
Swing out 4 x 100 ml ID;
Angle 12 x 1.5 / 2.0 ml ID;
Angle 4 x 8-w PCR Strip ID;
Angle 44 x 1.5 / 2.0 ml ID;
Swing out 4 x 100 ml ID Sealable;
Angle 6 x 85 ml RB ID;
Angle 24 x 1.5 / 2.0 ml ID;
Angle 6 x 85 ml RB ID Hi;
Angle 30 x 15 ml RB/FA ID;
Angle 30 x 1.5 / 2.0 ml ID Sealable;
Angle 10 x 50 ml FA ID;
Angle 64 x 0.5 ml ID;
Angle 20 x 10 ml RB ID Hi;
Angle 6 x 50 ml RB/FA ID;
Swing out 2 x 3MTP ID
Rotor Recognition Method
Auto
Running Time
Continous;
Quickspin;
10 sec to 99 h 59 min 59 sec
