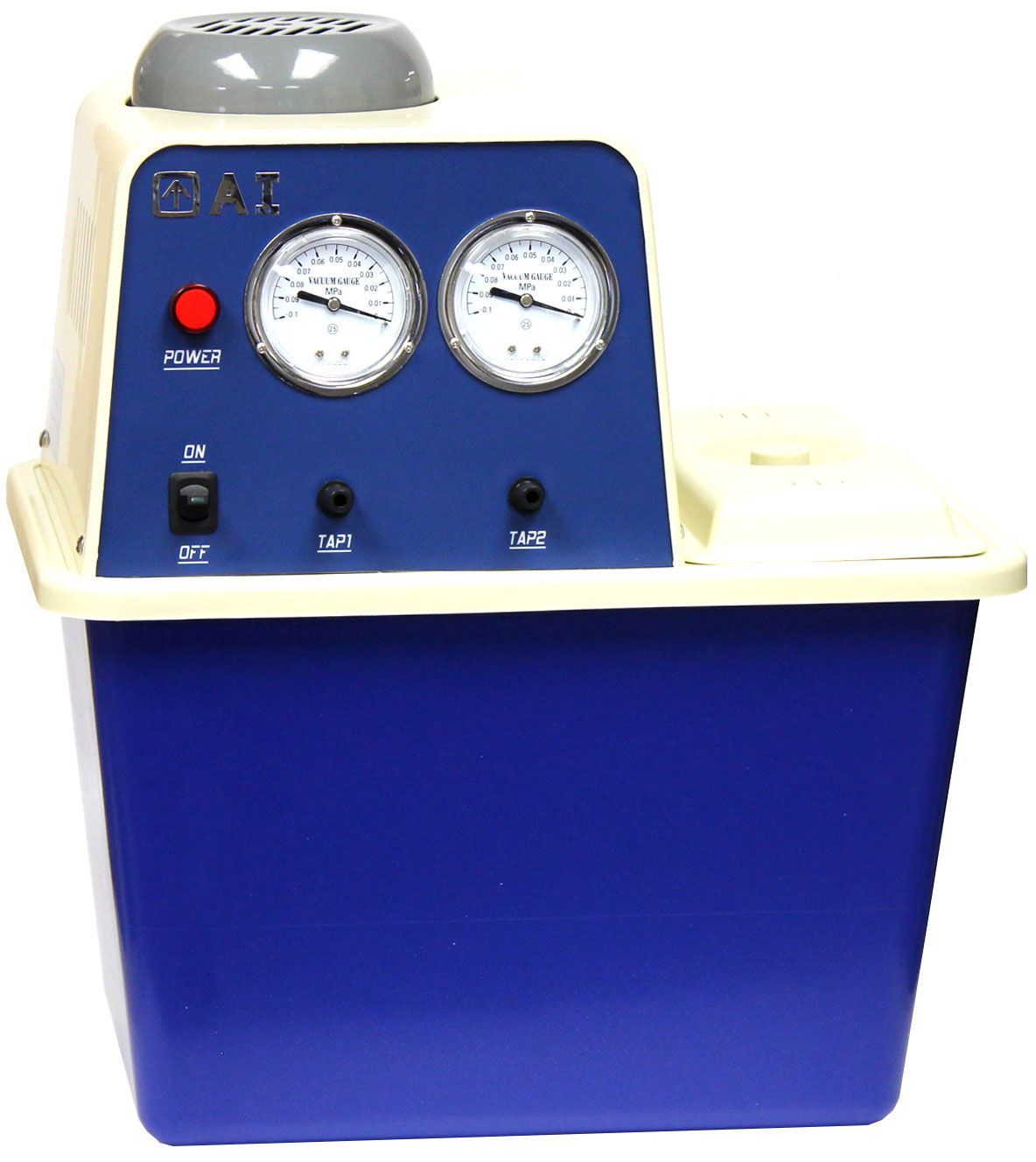

Ai WaterVac 0.7 cfm 2-Head Water Aspirator Vacuum Pump

Ai WaterVac 0.7 cfm 2-Head Water Aspirator Vacuum Pump

Across International lists WV07 as the Ai WaterVac 0.7 cfm 2-Head Water Aspirator Vacuum Pump. The live product page presents it as a recirculating water vacuum pump with dual vacuum heads, built-in water reservoir, and a compact design suited for routine laboratory vacuum applications.

Features

  • 0.7 cfm 2-head water aspirator vacuum pump.
  • Dual 3/8" hose barb vacuum inlets.
  • Built-in 4 gallon / 15 liter water reservoir.
  • Recirculating water flow rate of 21 gallons per minute.
  • Back-flow check valve for safety.
  • Compact benchtop footprint with integrated reservoir and pump system.
As low as
IN STOCK Model: WV07 Delivery Time: 1-3 Weeks

Specifications

 Model  WV07
 Electrical requirements  110 Volts 60Hz single phase, 180 watts
 Pumping rate  0.7 cfm
 Ultimate vacuum pressure  735 torr
 Vacuum inlet (vacuum connection)  3/8" hose barb x 2
 Water reservoir  Capacity: 4 gallons / 15 liters
 Recirculating water  Flow rate: 21 gallon/min
 Max head: 33 feet
 Adjustable vac./gas ballast  No
 Safety  Back-flow check valve
 Material  Housing, water reservoir, 3 way tee: plastic
 Water jet: copper + PTFE
 Check valve: plastic + copper
 Pump body, pump vane: type 304 stainless steel
 Vacuum tubing: fluorine rubber
 Pump dimensions (WxDxH)  15 x 12 x 17"
 Shipping dimensions (LxWxH)  17 x 14 x 20"
 Pump weight  24 Lb
 Shipping weight  28 Lb
 Warranty  One year
  • Weight 12.5 Kg
  • Dimensions 15 Inch x 15 Inch x 15 Inch
