Specifications

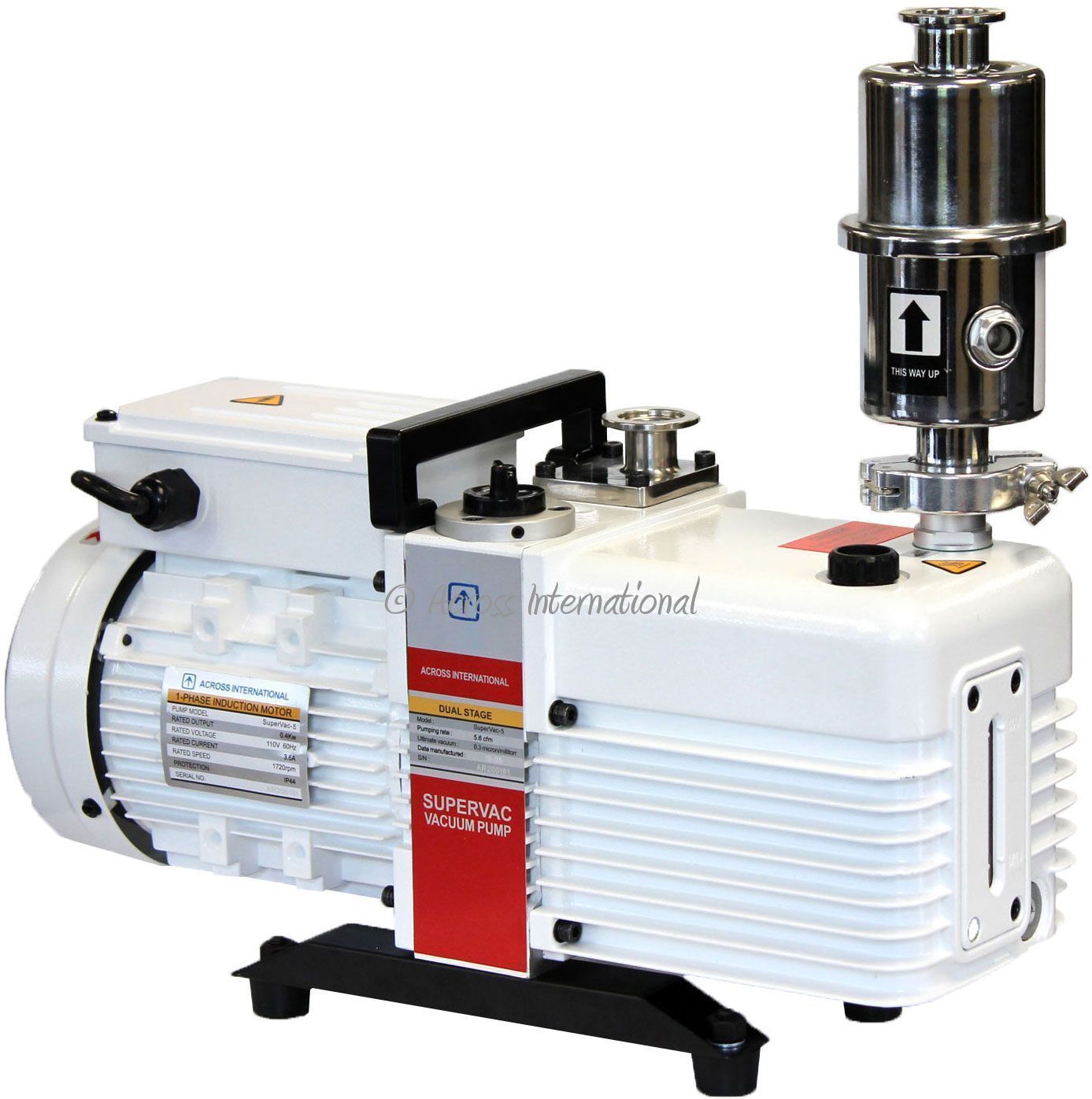

| Model | SV5C-UL |
| Electrical requirements | 115V or 220V switchable, 50/60Hz single phase, 370 watts |
| Pumping rate | 5.6 cfm |
| Ultimate vacuum without gas ballast | 0.3 micron/millitorr |
| Ultimate vacuum with gas ballast | 6 micron/millitorr |
| Inlet/outlet connection | KF25/NW25 flange |
| Oil volume | 1 liter / 1.06 quart |
| Motor speed | 1450 rpm (50Hz) or 1720 rpm (60Hz) |
| Working temperature | 5 to 40C |
| Unit dimensions (LxWxH) | 17 x 6.75 x 9.75 inch or 17 x 6.75 x 16 inch (with filter) |
| Shipping dimensions (LxWxH) | 23 x 8.5 x 13 inch |
| Unit weight | 47 Lb |
| Shipping weight | 55 Lb |
| Recommended oil | Ultragrade 19 |
| Noise level | < 56 dB |
| Warranty | Two years |
| Compliance | UL (E500328), CE |
