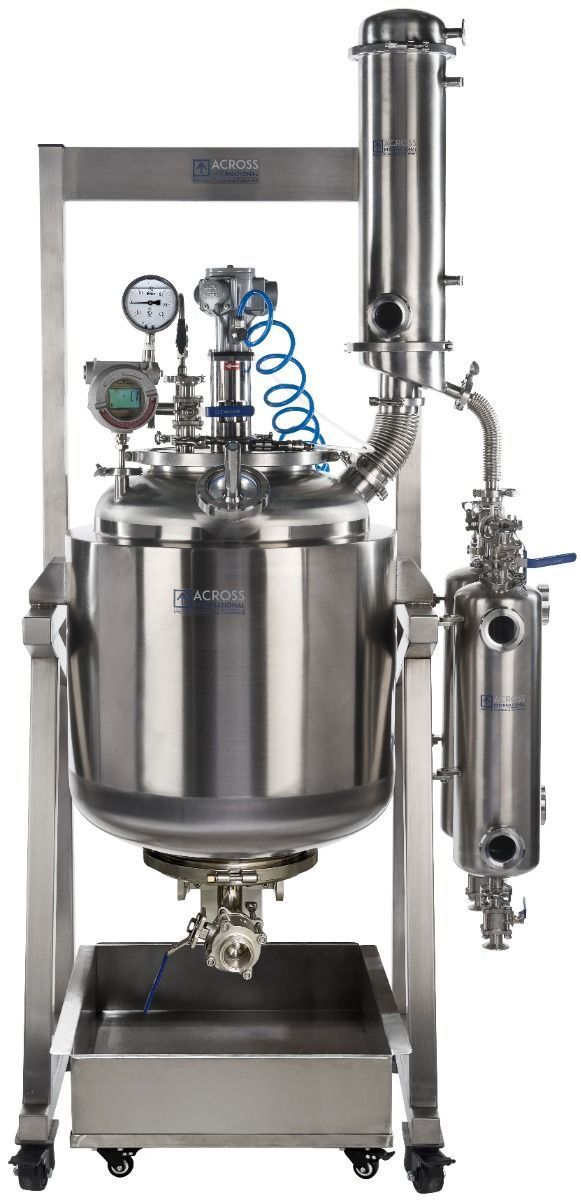

Ai Dual-Jacketed 100L 316L-Grade Stainless Steel Filter Reactor

Ai Dual-Jacketed 100L 316L-Grade Stainless Steel Filter Reactor

Across International's ETL certified, dual-jacketed 100L stainless steel filter reactor is suited for containing chemical reactions in a controlled process environment. Across lists this model as the Ai ETL C1D1 Dual-Jacketed 100L 316L-Grade SST Filter Reactor, with optional C1D1 peer review available.

Features

  • 100L dual-jacketed stainless steel filter reactor with 316L wetted main vessel surfaces.
  • Electropolished 316L main vessel with integrated filter-reactor configuration.
  • Quick-change agitator design with detachable 316L agitator section.
  • 22L center fluid jacket with sealed outer insulation jacket.
  • Shell-and-tube condenser with 70 tubes and 0.89 m2 condensing area.
  • Collection tank configurations include dual 10L 316L tanks with manifold, 50L 304 tank with dolly, or 100L 304 tank with dolly.
  • Available with electric stirring motor, pneumatic stirring motor, or optional pneumatic motor with C1D1 peer review.
  • Optional 316L stainless steel splash bin with detachable mobile base.
  • ETL tested to UL and CSA standards, with optional C1D1 peer review by PSI.
As low as
IN STOCK Model: SR100f Delivery Time: 1-3 Weeks

Specifications

 Model  SR100f
 Electric stirring motor  220V, 50/60Hz, 1-phase, 200 watts, 1/4 HP
 Rotation: 450 rpm max. (+/-8%)
 Starting torque: 3.0 N.m
 Rated torque: 1.54 N.m
 Built-in gearbox ratio: 3:1 to 180:1
 Controller: Delta, UL listed
 Pneumatic stirring motor  Power: 1/4 HP
 Rotation: 450 rpm max. (+/-8%)
 Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)
 Working temperature: -10C to +70C
 For constant use, set rpm to 80% of maximum rpm
 Motor lubricant: Mobil Grease XHP 222, lithium complex, blue, NLGI Grade 2
 Check, replenish, or replace every 500 hours
 Air lubricant type: JIS K2213-1 (ISOVG32)
 Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
 Air lubricant speed: 2-3 drops per minute
 Port configuration  Lid: 12 inch triclamp
 Center motor port: 3 inch triclamp
 Drain port: 6 inch triclamp
 Drain port on/off valve: 2 inch triclamp
 Vacuum port: 1 inch triclamp
 Condenser recirculating fluid port: 1/2 inch female NPT
 Vessel jacket recirculating fluid ports: 1 inch female NPT
 50L/100L collection tanks: standard lid 6 inch tri-clamp, with 1.5 inch tri-clamp x 4
 Main vessel  Volume: 100L
 Material: 316L grade stainless steel
 Interior finish: electropolished
 Agitator  Structure: propeller, 3-blade, dual-layer (standard)
 Style: quick-change
 Material: 316L grade stainless steel
 Detachable length: 20 inches
 Center fluid jacket  Volume: 22L
 Material: 304 grade stainless steel
 Outer insulation jacket  Sealed
 Material: 304 grade stainless steel
 Collection tank  Option 1: 10L x 2, 316L stainless steel, with manifold
 Option 2: 50L x 1, 304 stainless steel, with dolly (15.5 inch diameter, 23.5 inch height, 30 inch with dolly)
 Option 3: 100L x 1, 304 stainless steel, with dolly (15.5 inch diameter, 43 inch height, 49.5 inch with dolly)
 Material  All wetted parts are 316L grade stainless steel on the main reactor body
 Rest of reactor is 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis
 Main condenser  Style: shell and tube heat exchanger
 Number of tubes: 70
 Condensing area: 0.89 m2
 Pressure  Ultimate vacuum level: 1 Torr
 Temperature range  -55C to +250C (-67F to +482F)
 Temperature sensor/display  Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
 Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
 Sealing gasket  Food grade Viton
 Main mounting frame  Heavy duty 2 x 2 inch 304 grade stainless steel, mounted on four casters
 Drain port ground clearance  Drain port: 19.5 inches
 Drain valve: 13 inches
 Shipping weight (unit)  255 lbs / 350 lbs
 Shipping dimensions  46 x 37 x 80 inches
 Assembled dimensions  30 x 29 x 72 inches (WxDxH) without condenser and receiving flasks
 36 x 29 x 81 inches (WxDxH) with condenser and receiving flasks
 Compliance  ETL tested to UL and CSA standards
 C1D1 peer review by PSI (optional)
  • Weight 360 Kg
  • Dimensions 46 Inch x 37 Inch x 80 Inch
