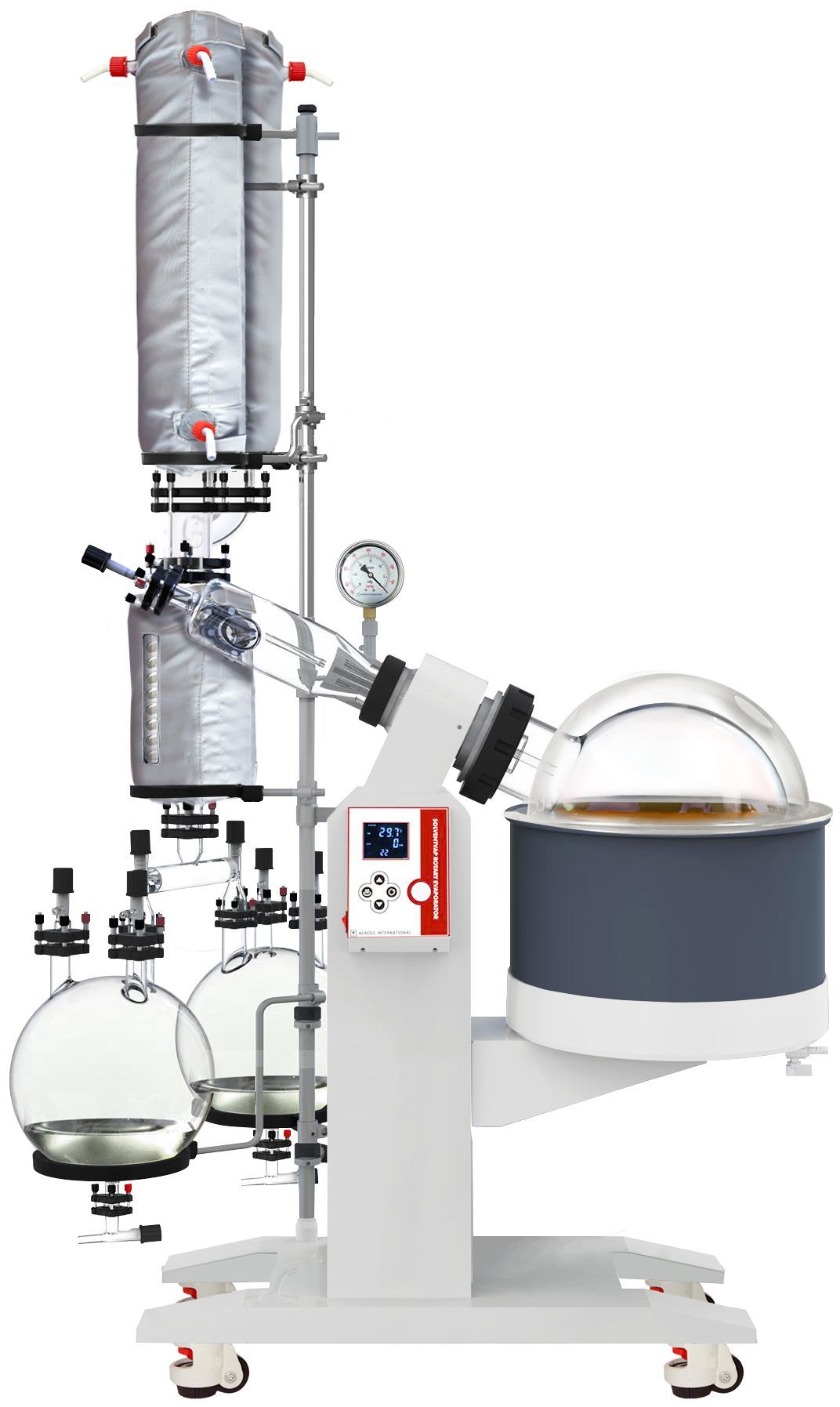

Ai SolventVap 5.3-Gallon/20L Rotary Evaporator w/ Motorized Lift

Ai SolventVap 5.3-Gallon/20L Rotary Evaporator w/ Motorized Lift

Across International lists SE53 as the Ai SolventVap 5.3-Gallon/20L Rotary Evaporator w/ Motorized Lift. The live product page presents this 20L SolventVap as an ETL-tested rotary evaporator with vertical glassware, digital temperature and rotation control, solvent-resistant PTFE valves, and built-in safety protections for reliable solvent removal.

Features

  • ETL tested to UL and CSA standards, with CE certification available as an option.
  • Condenser insulation sleeves increase safety and cooling efficiency and are included with the rotovap.
  • Water bath cover helps improve safety, temperature uniformity, and energy efficiency while reducing heat and humidity loss.
  • New swivel casters can be adjusted for secure placement on uneven floors.
  • Includes a stainless steel 20L evaporating flask carrier with silicone cushions for easier loading and unloading.
  • Solvent-resistant PTFE and Viton gaskets support long operating life.
  • Compact worm-and-gear drive supports quiet, precise, low-vibration operation.
  • Motorized water bath lifting and digital speed/temperature display support straightforward control.
As low as
IN STOCK Model: SE53 Delivery Time: 1-3 Weeks

Specifications

 Model  SE53
 Electrical requirements  220V 50/60Hz single phase, 20A, 4300 watt
 Rotation motor: 300 watts
 Glass material  High borosilicate glass 3.3
 Evaporating flask  Capacity: 5.28 gallon (20 liters or 0.7 cu ft)
 Maximum load: not to exceed 60% of the flask capacity
 Sealing flange: 4.9 inch diameter
 Rotation speed: 10 to 130 rpm
 Evaporating speed: 1 gallon/hour (water), 2 gallon/hour (alcohol)
 Receiving flask  2.64 gallon (10 liters or 0.35 cu ft)
 Condenser  Glassware: main and auxiliary triple-circulating cold traps, vertical
 Chilling fluid connection: 3/8 inch hose barb x 4 (2 on main and 2 on auxiliary)
 Condensing surface:
 Main condenser: 9,480 cm2 or 10.2 sq ft
 Auxiliary condenser: 3,580 cm2 or 3.9 sq ft
 Working environment  5 to 95F
 Water bath  Temperature range: ambient to 99C (210F)
 Temperature controller: digital
 Dimensions: 17.5 inch diameter x 9.8 inch depth x 12 inch height
 Material: stainless steel
 Media: distilled water only
 Max water level: not to exceed 1 inch from the top rim of the bath
 Number of heaters: two
 Drain port: one
 Exterior liner: rubber
 Lifting: motorized
 Maximum lifting distance: 7.5 inches
 Vacuum  Vacuum level: < 3 torrs
 Vacuum sealing: PTFE and Viton gaskets
 Vacuum connection: 3/8 inch hose barb x 1
 Swivel casters  Four, built-in with locks
 Safety  Dry-run, over-temp shut-off, built-in circuit breakers
 Weight and dimensions  Shipping: 238 Lb (evaporator), 130 Lb (glassware)
 Unit: 49 x 23.5 x 82.5 inch (WxDxH)
 Shipping: 41 x 24 x 48 inch (evaporator), 34 x 29 x 33 inch (glassware) (WxDxH)
 Compliance  UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
 CE
  • Weight 192.5 Kg
  • Dimensions 34 Inch x 29 Inch x 34 Inch
