Ai SolventVap 5L Evaporator w/ Cold Trap Condenser & Power Lift

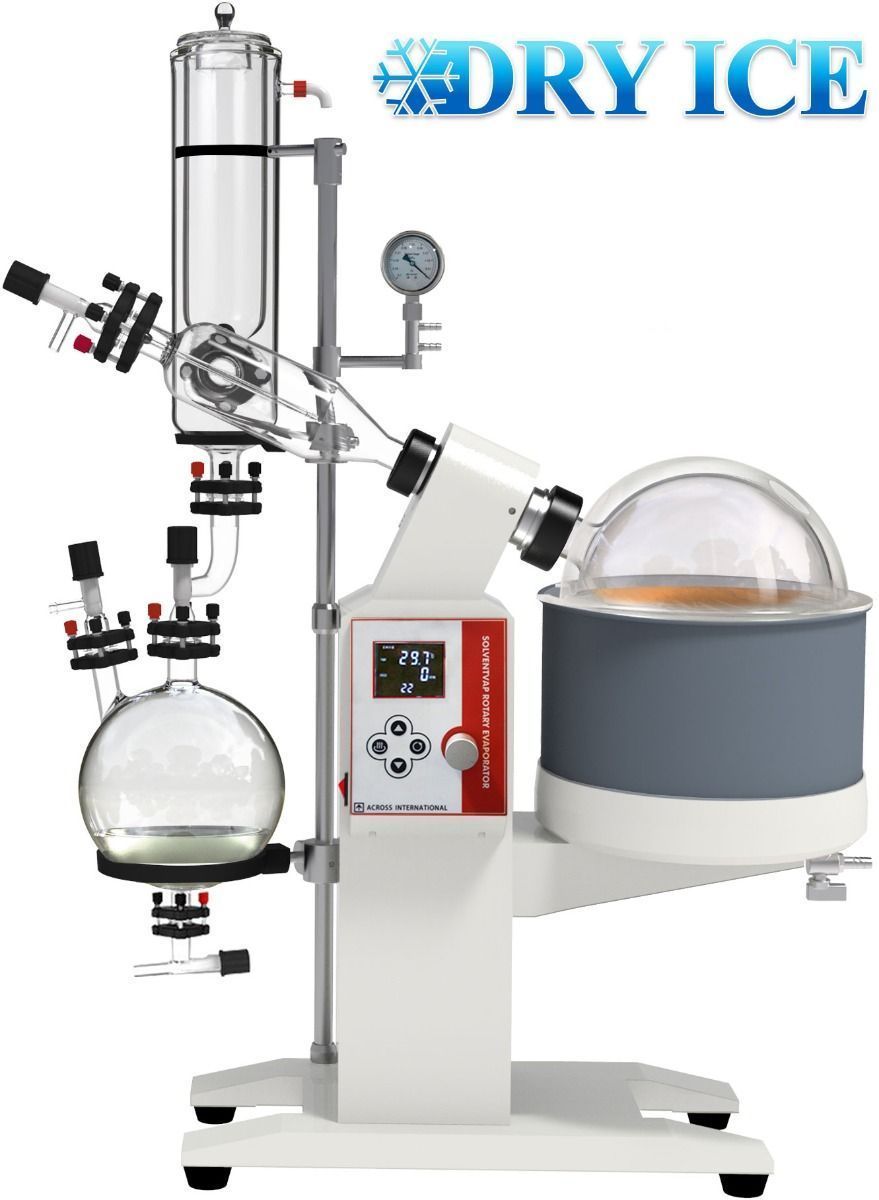

Ai SolventVap 5L Evaporator w/ Cold Trap Condenser & Power Lift

Across International lists SE13c as the Ai SolventVap 5L Evaporator w/ Cold Trap Condenser & Power Lift. The live product page presents this 5L SolventVap as a cold-trap condenser rotary evaporator with digital temperature and speed control, power lift operation, and safety protections for reliable solvent removal.

Features

  • Cold trap condenser configuration with power lift.
  • UL/CSA tested design, with CE listed in the compliance section.
  • Solvent-resistant PTFE and Viton gaskets support long operating life.
  • Water bath cover helps improve safety, temperature uniformity, and energy efficiency while reducing heat and humidity loss.
  • Compact worm-and-gear drive supports quiet, precise, low-vibration operation.
  • Downward-condensing vacuum connection design supports safer vacuum operation.
  • Motorized water bath lifting provides controlled lift movement.
  • Digital speed and temperature display plus PID control support straightforward, accurate operation.
As low as
IN STOCK Model: SE13c Delivery Time: 1-3 Weeks

Specifications

 Model  SE13c
 Electrical requirements  110V 60Hz single phase, 2300 watts, 21A
 or
 220V 50/60Hz single phase, 2300 watts, 10.5A
 Rotation motor: 300 watts
 Glass material  High borosilicate glass 3.3
 Evaporating flask  Capacity: 1.32 gallon (5 liters)
 Maximum load: not to exceed 60% of the flask capacity
 Sealing flange: 2 inch diameter
 Rotation speed: 10 to 140 rpm
 Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
 Receiving flask  0.79 gallon (3 liter)
 Condenser  Glassware: vertical cold trap condenser with lid
 Vacuum connection: 3/8 inch hose barb x 1
 Working environment  5 to 95F
 Water bath  Temperature range: ambient to 99C (210F)
 Temperature controller: digital
 Dimensions: 11.4 inch diameter x 6.7 inch depth x 9 inch height
 Material: stainless steel
 Media: distilled water only
 Max water level: not to exceed 1 inch from the top rim of the bath
 Number of heaters: one
 Drain port: one
 Exterior liner: rubber
 Lifting: motorized
 Maximum lifting distance: 4 inches
 Vacuum  Ultimate vacuum level: < 3 torrs
 Connection: 3/8 inch hose barb x 1
 Sealing: Viton and PTFE gaskets
 Safety  Dry-run, over-temp shut-off, built-in circuit breakers
 Weight and dimensions  105 Lb (evaporator), 57 Lb (glassware)
 Unit: 30 x 15.7 x 42 inch (WxDxH)
 Shipping: 29 x 17 x 35 inch (evaporator), 22 x 22 x 22 inch (glassware) (WxDxH)
 Warranty  One year warranty on rotary evaporator except glassware and all sealing gaskets.
 Glassware may have minute blemishes that will not affect function.
 If you believe there are imperfections on your glassware, please contact Across.
 Across checks inventory to avoid shipping defective glassware.
 Compliance  UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
 CE
  • Weight 60 Kg
  • Dimensions 25 Inch x 25.00 Inch x 25 Inch
