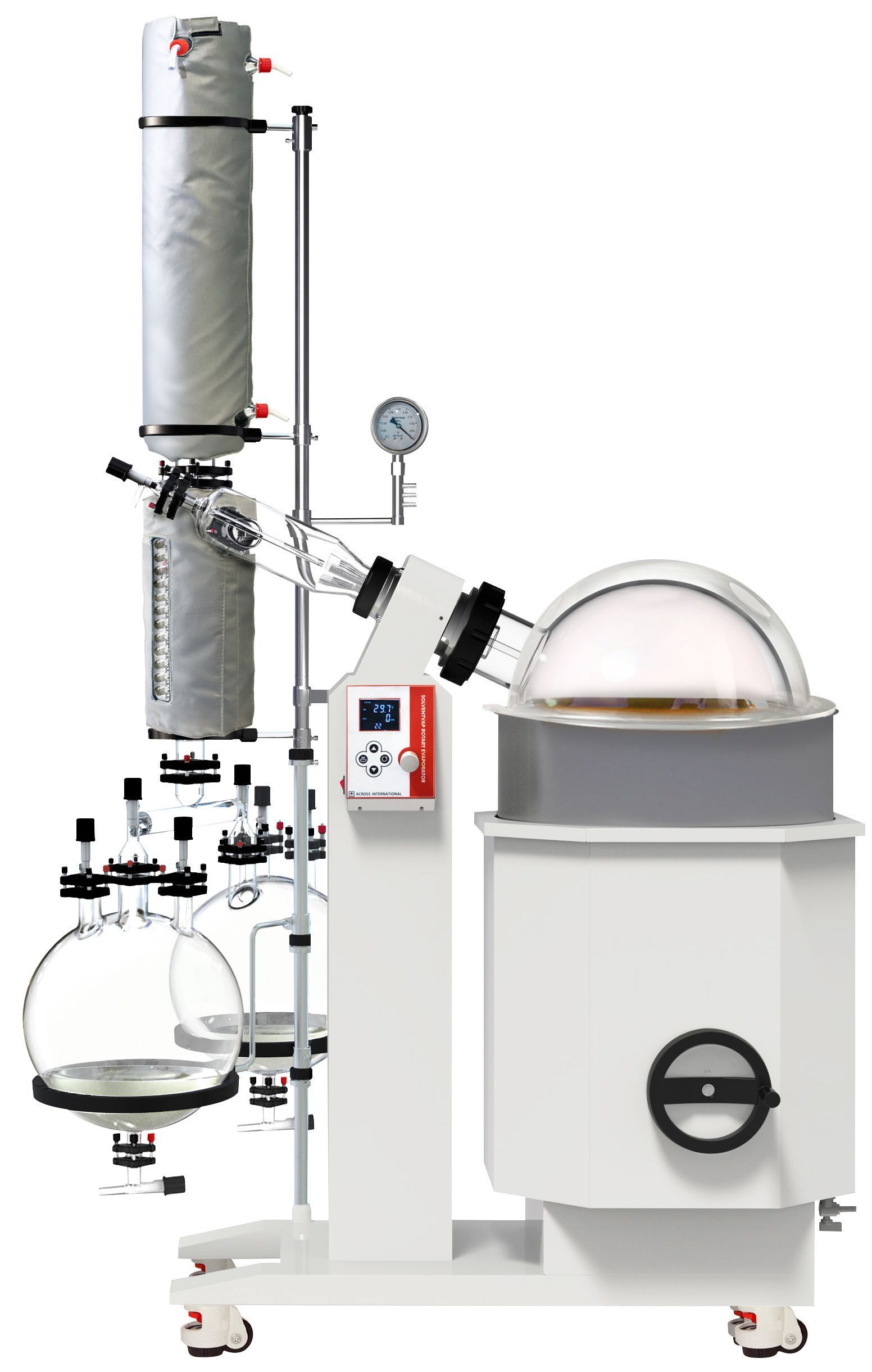

Ai SolventVap 13G/50L Rotary Evaporator Motorized+Manual Lift

Ai SolventVap 13G/50L Rotary Evaporator Motorized+Manual Lift

Across International lists SE130 as the Ai SolventVap 13G/50L Rotary Evaporator Motorized+Manual Lift. The live product page describes the SolventVap 50L series as an ETL-tested rotary evaporator with vertical glassware, digital temperature and rotation control, optimized bath volume for rapid heat-up, and safety protections intended for dependable large-scale solvent removal.

Features

  • ETL tested to UL and CSA standards, with CE noted as optional on the live page.
  • Condenser insulation sleeves are included to improve personnel safety and cooling efficiency.
  • Water bath cover helps improve safety, temperature uniformity, and energy efficiency while reducing heat and humidity loss.
  • Adjustable swivel casters help the rotovap stand securely on uneven floors.
  • Includes a stainless steel 50L evaporating flask carrier with silicone cushions for easier loading and unloading.
  • Solvent-resistant PTFE and Viton gaskets support long operating life.
  • Motorized water bath lift is paired with an additional manual lift for backup in case of power failure.
  • Digital speed and temperature display plus PID control support straightforward, accurate operation.
As low as
IN STOCK Model: SE130 Delivery Time: 1-3 Weeks

Specifications

 Model  SE130
 Electrical requirements  220V 50/60Hz single phase, 29A, 6400 watts (rotation motor: 400 watts)
 Glass material  High borosilicate glass 3.3
 Evaporating flask  Capacity: 13.2 gallon (50 liters or 1.8 cu ft)
 Maximum load: not to exceed 60% of the flask capacity
 Sealing flange: 4.9 inch diameter
 Rotation speed: 10 to 110 rpm
 Evaporating speed: 2 gallon/hour (water), 4 gallon/hour (alcohol)
 Receiving flask  5.28 gallon (20 liters or 0.7 cu ft)
 Condenser  Glassware: main and auxiliary triple-circulating cold traps, vertical
 Chilling fluid connection: 3/8 inch hose barb x 4 (2 on main and 2 on auxiliary)
 Condensing surface
 Main condenser: 11,500 cm2 or 12.4 sq ft
 Auxiliary condenser: 4,000 cm2 or 4.3 sq ft
 Working environment  5 to 95F
 Water bath  Temperature range: ambient to 99C (210F)
 Temperature controller: digital
 Dimensions: 22.1 inch diameter x 12.2 inch height
 Material: stainless steel
 Media: distilled water only
 Max water level: not to exceed 1 inch from the top rim of the bath
 Number of heaters: three
 Drain port: one
 Lifting: motorized plus manual
 Maximum lifting distance: 9 inches
 Vacuum  Ultimate vacuum level: < 3 torrs
 Sealing: PTFE + Viton gaskets
 Connection: 3/8 inch hose barb x 1
 Safety  Dry-run, over-temp shut-off, built-in circuit breakers
 Dimensions (WxDxH)  Unit: 52 x 30 x 92 inch (fully assembled)
 Shipping: 46 x 28 x 58 inch (evaporator), 41 x 34 x 32 inch (glassware)
 Shipping weight  525 Lbs
 Compliance  UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
 CE (only available in 380V 50Hz, 3-phase)
  • Weight 150 Kg
  • Dimensions 35 Inch x 35 Inch x 35 Inch
