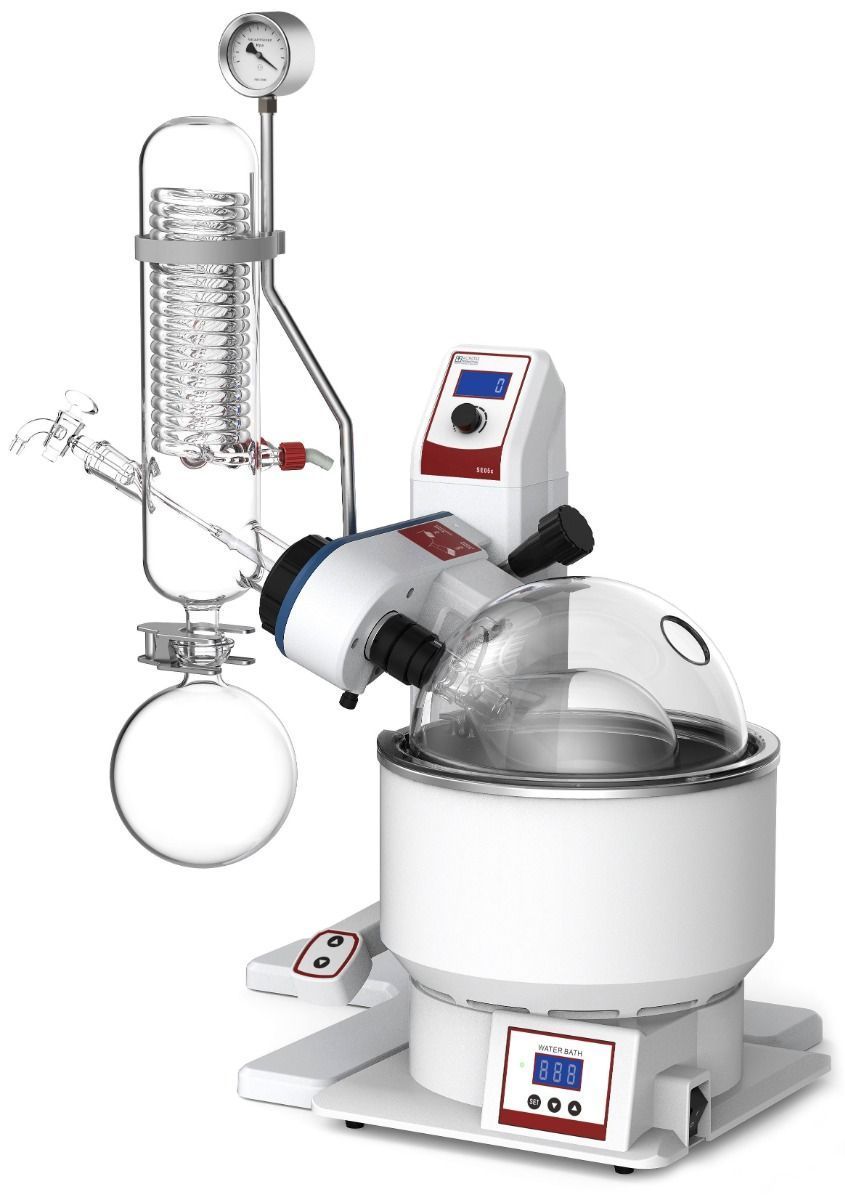

Ai SolventVap 2L Rotary Evaporator with Electric Flask Lift 110V

Ai SolventVap 2L Rotary Evaporator with Electric Flask Lift 110V

Across International lists SE05x.110 as the Ai SolventVap 2L Rotary Evaporator with Electric Flask Lift 110V. The live product page describes the SolventVap 2L series as a modular rotary evaporator with a heating bath, vertical glassware, and digital temperature and rotation control for reliable and reproducible solvent removal.

Features

  • Electric evaporating flask lift, nonexposed water bath heater, and plexiglass bath cover are included as standard.
  • Solvent-resistant PTFE and Viton gaskets are designed for long service life.
  • Compact intermeshed worm and worm-gear drive provides quiet, precise, low-vibration rotation.
  • Downward-condensing vacuum connection design supports safer vacuum operation.
  • Modular rotary and water bath design allows easier maintenance and future upgrades.
  • Digital speed display and PID temperature control support straightforward operation.
  • Built-in dry-run protection, over-temperature shutoff, and fuse protection are part of the safety package.
As low as
IN STOCK Model: SE05x.110 Delivery Time: 1-3 Weeks

Specifications

 Model  SE05x.110
 Electrical requirements  110V 60Hz 1-phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts)
 Glass material  High borosilicate glass 3.3
 Evaporating flask  Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L), or 0.53 gallon (2L)
 Maximum load: not to exceed 60% of the flask capacity
 Rotation speed: 20 to 280 rpm
 Evaporating speed: 20 ml per minute
 Lifting: electric
 Max lifting distance: 4 inches (extendable to 10 inches)
 Receiving flask  0.26 gallon (1L)
 Condenser  Glassware: vertical with dual-spiral glass tubing
 Chilling fluid connection: 3/8 inch hose barb x 2
 Vacuum connection: 3/8 inch hose barb x 1
 Condensing surface: 1,260 cm2 or 1.4 sq ft
 Working environment  5 to 95F
 Water bath  Temperature range: ambient to 95C
 Temperature controller: digital
 Capacity: 6.5 L
 Material: stainless steel
 Dimensions: 10 inch diameter x 5 inch depth x 9.75 inch height
 Media: distilled water only
 Max water level: not to exceed 1 inch from the top rim of the bath
 Number of heaters: one
 Vacuum  Connection: 3/8 inch hose barb x 1 (on condenser)
 Sealing: PTFE + Viton gaskets
 Ultimate vacuum: < 3 torrs
 Safety  Dry-run, over-temp shut-off, fuse protections
 Unit/shipping weight  21 / 55 Lb
 Unit/shipping dimensions  22 x 12.5 x 26 inch / 24 x 24 x 25 inch (WxDxH)
 Warranty  One year warranty on unit except glassware and all sealing gaskets.
 Glassware may have minute blemishes that will not affect function.
 If you believe there are imperfections on your glassware, please contact Across.
 Across checks inventory to avoid shipping defective glassware.
 Compliance  ETL tested to UL and CSA standards
  • Weight 40 Kg
  • Dimensions 24 Inch x 29 Inch x 35 Inch
