8mm Diameter ID Hardened Steel Dry Pressing Die Set

8mm Diameter ID Hardened Steel Dry Pressing Die Set
 SDS8 Dry Pressing Die Set

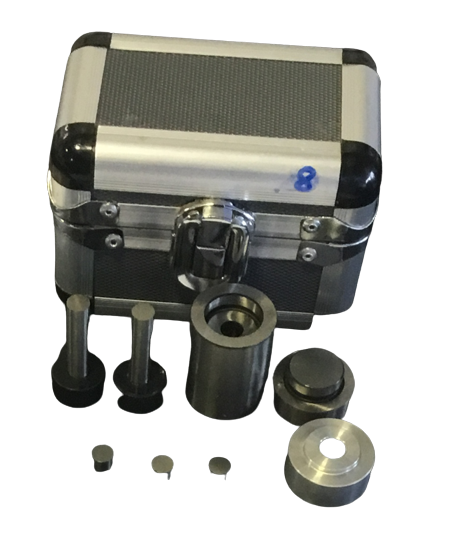

8mm Diameter ID Dry Pressing Die Set (SDS8)

A set of 8mm diameter (ID) hardened steel dry pressing die set for pellet presses, designed to make 8mm cylinder-shaped pellets.

Includes:

  • Two 8mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS8 Delivery Time: 1-3 Weeks
 SDS8 Technical Specifications

Technical Specifications for SDS8

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 8 mm
  • Sleeve Diameter (OD): 35 mm
  • Sleeve Height: 30 mm
  • Total Height: 70 mm (assembled without sample)
  • Max Load Height: 12 mm
  • Maximum Pressure: 40 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Weight 1 Kg
  • Dimensions 6 Inch x 6 Inch x 6 Inch
