6mm Diameter ID Vacuum Dry Pressing Die Set

6mm Diameter ID Vacuum Dry Pressing Die Set
 SDS6.V Dry Pressing Die Set

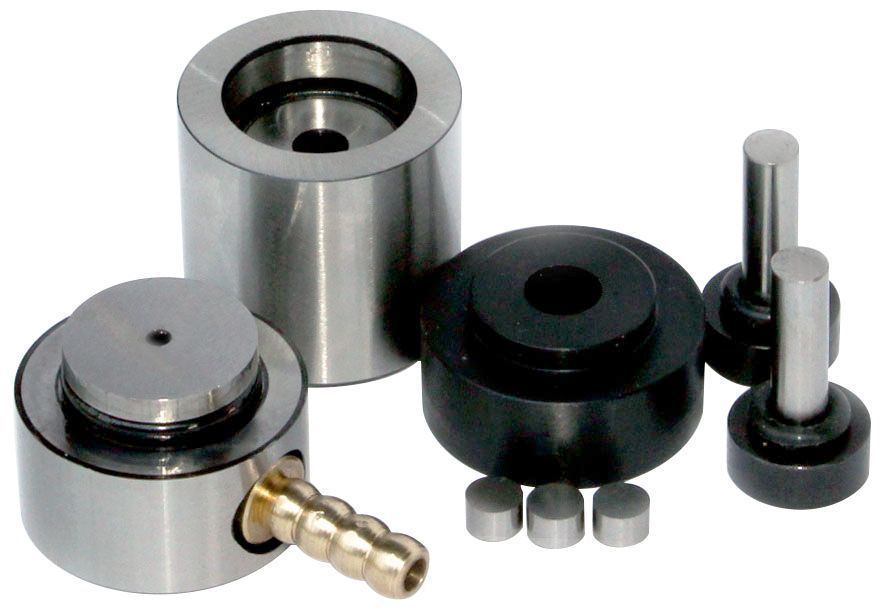

6mm ID Vacuum Dry Pressing Die Set (SDS6.V)

A set of 6mm diameter (ID) hardened steel dry pressing die set with vacuum capability, designed to make 6mm cylinder-shaped pellets under controlled vacuum conditions.

Includes:

  • Two 6mm ID cylinder-shape core dies made of highly polished hardened steel
  • One vacuum-compatible steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector
  • Vacuum sealing components

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Ensure proper vacuum sealing before applying pressure
As low as
IN STOCK Model: SDS6.V Delivery Time: 1-3 Weeks
 SDS6.V Technical Specifications

Technical Specifications for SDS6.V

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 6 mm
  • Sleeve Diameter (OD): 30 mm
  • Sleeve Height: 25 mm
  • Total Height: 60 mm (assembled without sample)
  • Max Load Height: 10 mm
  • Maximum Pressure: 30 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Special Feature: Vacuum sealing capability for controlled environment pressing
  • Weight 1 Kg
  • Dimensions 6 Inch x 4 Inch x 4 Inch
