50mm Diameter ID Vacuum Dry Pressing Die Set

50mm Diameter ID Vacuum Dry Pressing Die Set
 SDS50.V Dry Pressing Die Set

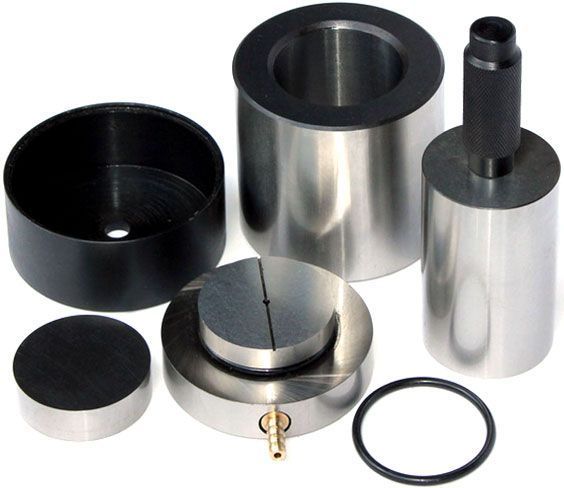

50mm ID Vacuum Dry Pressing Die Set (SDS50.V)

A set of 50mm diameter (ID) hardened steel dry pressing die set with vacuum capability, designed to make 50mm cylinder-shaped pellets under controlled vacuum conditions.

Includes:

  • Two 50mm ID cylinder-shape core dies made of highly polished hardened steel
  • One vacuum-compatible steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector
  • Vacuum sealing components

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Ensure proper vacuum sealing before applying pressure
As low as
IN STOCK Model: SDS50.V Delivery Time: 1-3 Weeks
 SDS50.V Technical Specifications

Technical Specifications for SDS50.V

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 50 mm
  • Sleeve Diameter (OD): 78 mm
  • Sleeve Height: 70 mm
  • Total Height: 135 mm (assembled without sample)
  • Max Load Height: 25 mm
  • Maximum Pressure: 100 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Special Feature: Vacuum sealing capability for controlled environment pressing
  • Weight 6 Kg
  • Dimensions 10 Inch x 10 Inch x 10 Inch
