50mm ID Round Easy-Retrieve Dry Pressing Die Set

50mm ID Round Easy-Retrieve Dry Pressing Die Set
 SDS50.K Dry Pressing Die Set

50mm ID Round Easy-Retrieve Dry Pressing Die Set (SDS50.K)

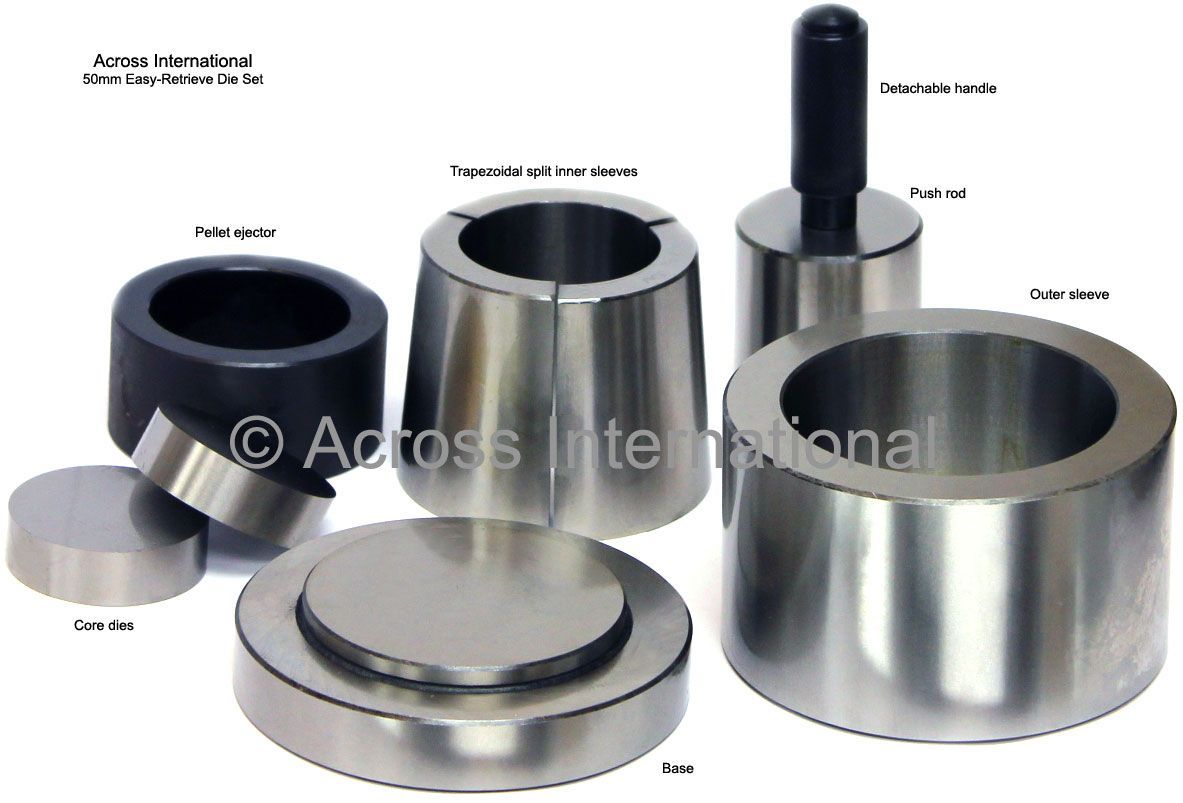

A set of 50mm diameter (ID) hardened steel trapezoidal split sleeve dry pressing die set for pellet presses, designed to make 50mm cylinder-shaped pellets. This version includes K-type accessories for easy retrieval and handling.

Includes:

  • Four 50mm diameter cylinder-shape core dies made of highly polished hardened steel
  • One outer sleeve with trapezoidal inner wall
  • Three trapezoidal inner sleeves
  • One support plate
  • Two push rods
  • One pellet ejector
  • K-type accessory kit for enhanced usability

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS50.K Delivery Time: 1-3 Weeks
 SDS50.K Technical Specifications

Technical Specifications for SDS50.K

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 50 mm
  • Sleeve Diameter (OD): 78 mm
  • Sleeve Height: 70 mm
  • Total Height: 135 mm (assembled without sample)
  • Max Load Height: 25 mm
  • Maximum Pressure: 100 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Accessories: Easy-retrieve trapezoidal split sleeve kit (K-type)
  • Weight 9.5 Kg
  • Dimensions 10 Inch x 10 Inch x 10 Inch
