50mm Diameter ID Dry Pressing Die Set

50mm Diameter ID Dry Pressing Die Set
 SDS50 Dry Pressing Die Set

50mm Diameter ID Dry Pressing Die Set (SDS50)

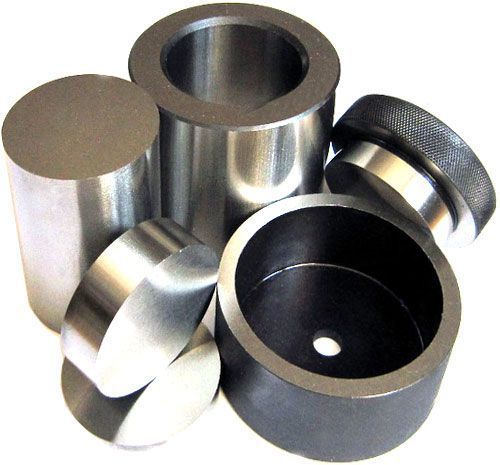

A set of 50mm diameter (ID) hardened steel dry pressing die set for pellet presses, designed to make 50mm cylinder-shaped pellets.

Includes:

  • Two 50mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Usage Notes:

  • Always wear protective goggles and gear during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
As low as
IN STOCK Model: SDS50 Delivery Time: 1-3 Weeks
 SDS50 Technical Specifications

Technical Specifications for SDS50

  • Material: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 50 mm
  • Sleeve Diameter (OD): 78 mm
  • Sleeve Height: 70 mm
  • Total Height: 135 mm (assembled without sample)
  • Core Die Thickness: 15 mm
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Max Sample Fill Height: Not to exceed 1/3 of sleeve height
  • Maximum Pressure: 100 metric tons
  • Rockwell Hardness: Rc 62
  • Working Environment: 0–50 °C, <35% RH humidity
  • Weight 5.5 Kg
  • Dimensions 10 Inch x 8 Inch x 6 Inch
