40mm ID Round Easy-Retrieve Dry Pressing Die Set

40mm ID Round Easy-Retrieve Dry Pressing Die Set
 SDS40.K Dry Pressing Die Set

40mm ID Round Easy-Retrieve Dry Pressing Die Set (SDS40.K)

A set of 40mm diameter (ID) hardened steel trapezoidal split sleeve dry pressing die set for pellet presses, designed to make 40mm cylinder-shaped pellets. This version includes K-type accessories for easy retrieval and handling.

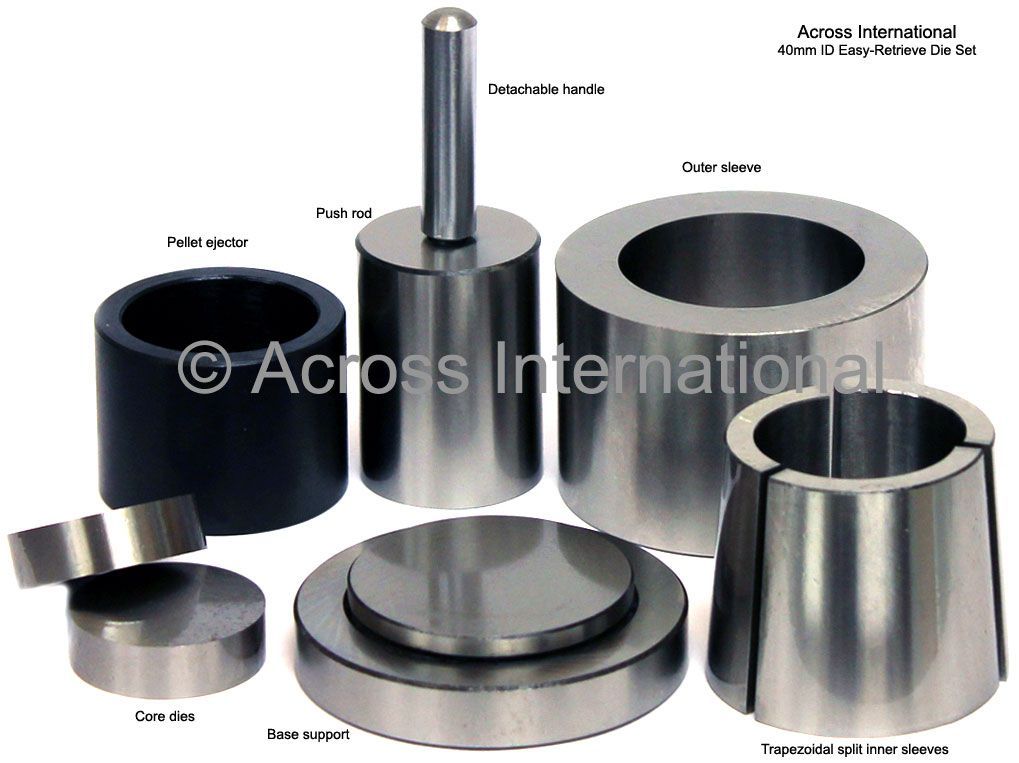

Includes:

  • Four 40mm diameter cylinder-shape core dies made of highly polished hardened steel
  • One outer sleeve with trapezoidal inner wall
  • Three trapezoidal inner sleeves
  • One support plate
  • Two push rods
  • One pellet ejector
  • K-type accessory kit for enhanced usability

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS40.K Delivery Time: 1-3 Weeks
 SDS40.K Technical Specifications

Technical Specifications for SDS40.K

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 40 mm
  • Sleeve Diameter (OD): 70 mm
  • Sleeve Height: 60 mm
  • Total Height: 120 mm (assembled without sample)
  • Max Load Height: 20 mm
  • Maximum Pressure: 90 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Accessories: Easy-retrieve trapezoidal split sleeve kit (K-type)
  • Weight 17.5 Kg
  • Dimensions 12 Inch x 12 Inch x 12 Inch
