30mm Diameter ID Dry Pressing Die Set

30mm Diameter ID Dry Pressing Die Set
 SDS30 Dry Pressing Die Set

30mm Diameter ID Dry Pressing Die Set (SDS30)

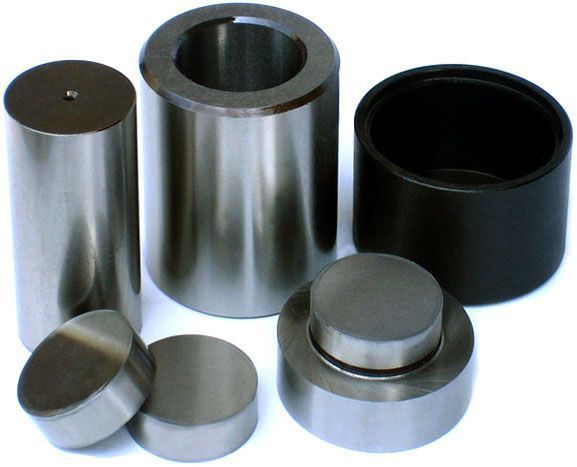

A set of 30mm diameter (ID) hardened steel dry pressing die set for pellet presses, designed to make 30mm cylinder-shaped pellets.

Includes:

  • Two 30mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS30 Delivery Time: 1-3 Weeks
 SDS30 Technical Specifications

Technical Specifications for SDS30

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 30 mm
  • Sleeve Diameter (OD): 60 mm
  • Sleeve Height: 50 mm
  • Total Height: 110 mm (assembled without sample)
  • Max Load Height: 20 mm
  • Maximum Pressure: 80 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Weight 2.5 Kg
  • Dimensions 10 Inch x 8 Inch x 6 Inch
