25mm ID Round Easy-Retrieve Dry Pressing Die Set

25mm ID Round Easy-Retrieve Dry Pressing Die Set
 SDS25.K Dry Pressing Die Set

25mm Diameter ID Dry Pressing Die Set with K-Type Accessories (SDS25.K)

A set of 25mm diameter (ID) hardened steel dry pressing die set for pellet presses, designed to make 25mm cylinder-shaped pellets. This version includes additional K-type accessories for enhanced usability.

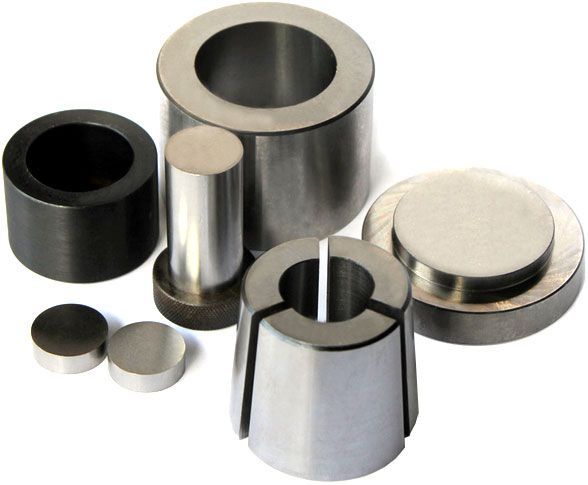

Includes:

  • Two 25mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod with detachable handle
  • One pellet ejector
  • K-type accessory kit for improved handling

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS25.K Delivery Time: 1-3 Weeks
 SDS25.K Technical Specifications

Technical Specifications for SDS25.K

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 25 mm
  • Sleeve Diameter (OD): 92 mm
  • Sleeve Height: 45 mm
  • Total Height: 105 mm (assembled without sample)
  • Max Load Height: 25 mm
  • Maximum Pressure: 70 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Accessories: K-type kit included for enhanced usability
  • Weight 4.5 Kg
  • Dimensions 10 Inch x 10 Inch x 10 Inch
