25mm (1") Diameter ID Dry Pressing Die Set (SDS25)

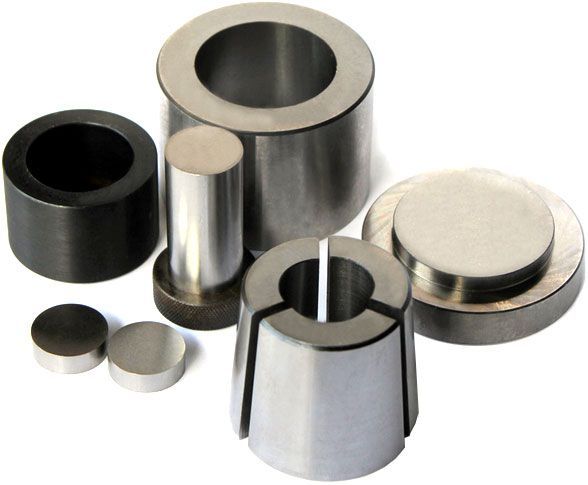

A set of 25mm diameter (ID) hardened steel dry pressing die set for pellet presses, designed to make 25mm cylinder-shaped pellets.

Includes:

As low as

IN STOCK Model: SDS25 Delivery Time: 1-3 Weeks

SDS25 Technical Specifications

Material Composition: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
Inner Diameter (ID): 25 mm
Sleeve Diameter (OD): 92 mm
Sleeve Height: 45 mm
Total Height: 105 mm (assembled without sample)
Max Load Height: 25 mm
Maximum Pressure: 70 tons
Rockwell Hardness: Rc 62
Working Environment: 0–50 °C, <35% RH humidity
