13mm ID Round Easy-Retrieve Dry Pressing Die Set

13mm ID Round Easy-Retrieve Dry Pressing Die Set
 SDS13.K Dry Pressing Die Set

13mm ID Round Easy-Retrieve Dry Pressing Die Set (SDS13.K)

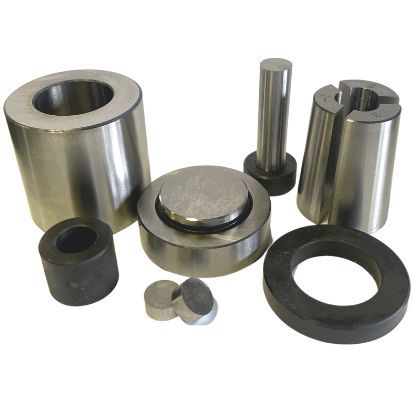

A set of 13mm diameter (ID) hardened steel trapezoidal split sleeve dry pressing die set for pellet presses, designed to make 13mm cylinder-shaped pellets.

Includes:

  • Four 13mm diameter cylinder-shape core dies made of highly polished hardened steel
  • One outer sleeve with trapezoidal inner wall
  • Three trapezoidal inner sleeves
  • One support plate
  • Two push rods
  • One pellet ejector

Usage Notes:

  • Always wear protective goggles during operation
  • Clean the die set thoroughly with absolute ethyl alcohol after use
  • Store in a dry box with silica gel to prevent rust and contamination
  • Do not exceed recommended pressure limits
As low as
IN STOCK Model: SDS13.K Delivery Time: 1-3 Weeks
 SDS13.K Technical Specifications

Technical Specifications for SDS13.K

  • Material: Core die & push rod: W18Cr4V hardened carbon tool steel; Sleeve, ejector & support: Cr12 hardened carbon tool steel
  • Inner Diameter (ID): 13 mm
  • Sleeve Diameter (OD): 45 mm
  • Sleeve Height: 35 mm
  • Total Height: 80 mm (assembled without sample)
  • Max Load Height: 15 mm
  • Maximum Pressure: 50 tons
  • Rockwell Hardness: Rc 62
  • Tolerance: 0.01–0.02 mm (10–20 micron)
  • Working Environment: 0–50 °C, <35% RH humidity
  • Accessories: Easy-retrieve trapezoidal split sleeve kit included
  • Weight 2.5 Kg
  • Dimensions 10 Inch x 8 Inch x 6 Inch
