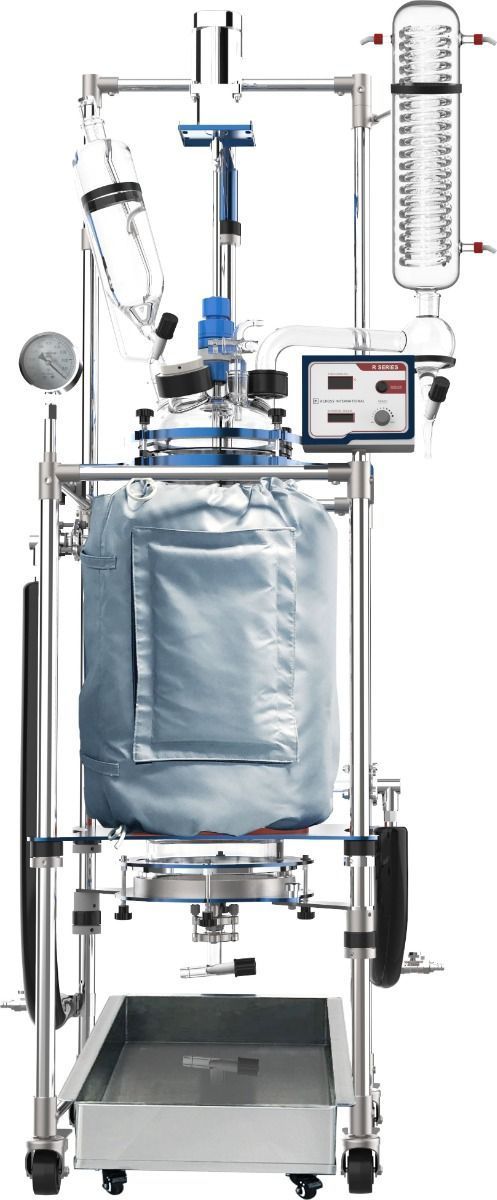

The Ai jacketed filter glass reactors are designed for synthetic reactions of different types of materials in a controlled temperature and vacuum environment. Jacketed filter reactors can be used for single or multi-step reactions and filtrations in the same vessel, including production and process scale peptide synthesis, while the filter base eliminates material transfers and significantly reduces material losses.

Each Ai reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows material to be added to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials at a controlled rate of speed.

Features

• ETL tested to UL and CSA standards, with CE optional.
• Filter reactor design supports single or multi-step reactions and filtrations in the same vessel while reducing material transfers and losses.
• Modular filter assembly can be detached for cleaning and filter paper replacement.
• Center downward drain port with angled drain grooves supports easier material drainage.
• All PTFE filter components support clean, long-lifespan operation.
• Solvent-resistant PTFE sealing components support long-term durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat, cold, and corrosion resistant.
• Adjustable stirring rate provides high torque or high speed.
• Patented PTFE stirring rod bearing supports reliable and quiet operation.
• Optional multi-layer stirring blades are available for optimized reaction results.
• The operating temperature range spans from -110F to 400F.
• Large condenser cooling surface supports exceptional condensation performance.
• Heavy duty stainless steel supporting framework with lockable casters provides mobility and stability.
• One-year warranty with lifetime US-based parts, service, and support.
