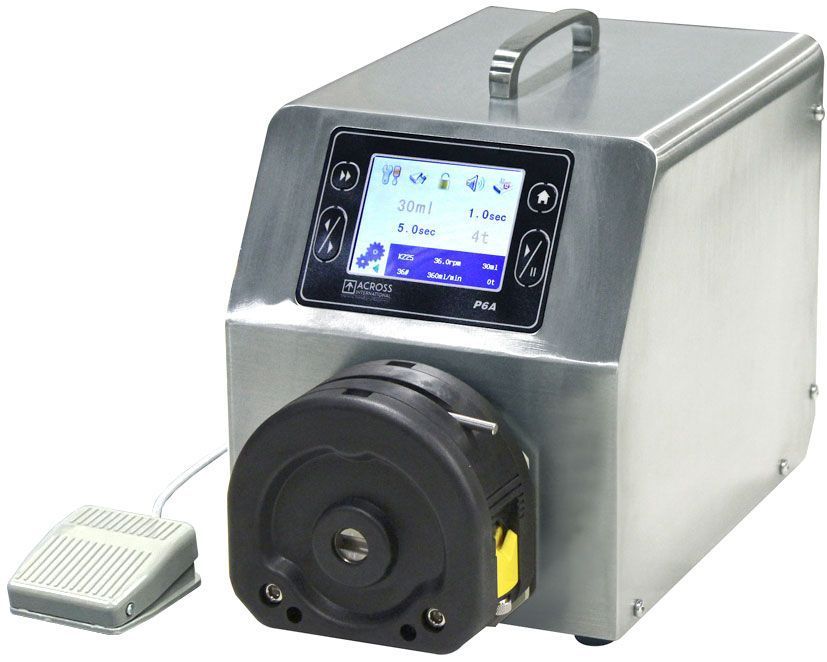

Ai P6A 6L/min SST Peristaltic Pump Touchscreen controller ETL

Ai P6A 6L/min SST Peristaltic Pump Touchscreen controller ETL

Across International lists P6A as the Ai P6A 6L/min SST Peristaltic Pump with touchscreen controller. The live product page describes a peristaltic pump as a positive displacement pump that moves fluid through a flexible tube by compressing it with rotating rollers, making it suitable for controlled transfer and dispensing of a variety of fluids.

Description

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing. A rotor with rollers attached to the outside of the rotor compresses the flexible tube and pushes fluid through the line. As the tube returns to its natural shape after the roller passes, more fluid is drawn into the pump. This peristaltic action allows continuous pumping or indexed dosing for smaller measured amounts.

As low as
IN STOCK Model: P6A Delivery Time: 1-3 Weeks

Specifications

 Model  P6A
 Electrical requirements  110V-230V with auto intelligent voltage recognition, 50/60Hz, 1-phase, 300 watts
 Power cord  110V US 3-prong (comes with purchase)
 230V cord available upon request
 Pumping rate  6 L/min (1.6 gallon/min)
 Max. rotation speed  600 rpm (at 0.1 rpm step)
 Pump head  K25
 Max. tubing size  1/2"
 Standard tubing model number  TP6A.XF
 Controller  Type: color LCD, touchscreen
 Distribution: 0 to 9999 times
 Distribution timer: 0.1 second to 9999 minutes
 Distribution interval: 0.1 second to 9999 minutes
 Fluid retainment  Pump roll back: 10 to 720 degrees (at 1 degree step)
 Speed: 10 to 300 rpm
 Working temperature  0 to 40C, <80% humidity
 IP rating  IP31
 Communication port  Included: Remote on/off switch
 Optional: RS485, 0-5V, 0-10V, 4-20mA input
 PLC control of pump start, stop, speed, and rotation directions
 Unit/shipping dimensions (WxDxH)  7 x 13.5 x 9" / 12 x 20 x 14"
 Unit/shipping weight  12 Lbs
 Compliance  ETL tested to UL and CSA standards
 Warranty  One year
 Standard package  Ai P6A peristaltic pump: 1 set
 Silicone tubing (9.6mm ID, 14.4mm OD): 6.5 ft
 Hose barb adapter: 2 pcs
 Remote on/off switch - 75 inches: 1 pc
 110V US 3-prong power cord (230V cord upon request): 1 pc
 Users manual: 1 pc
  • Weight 10 Kg
  • Dimensions 15 Inch x 15 Inch x 15 Inch
