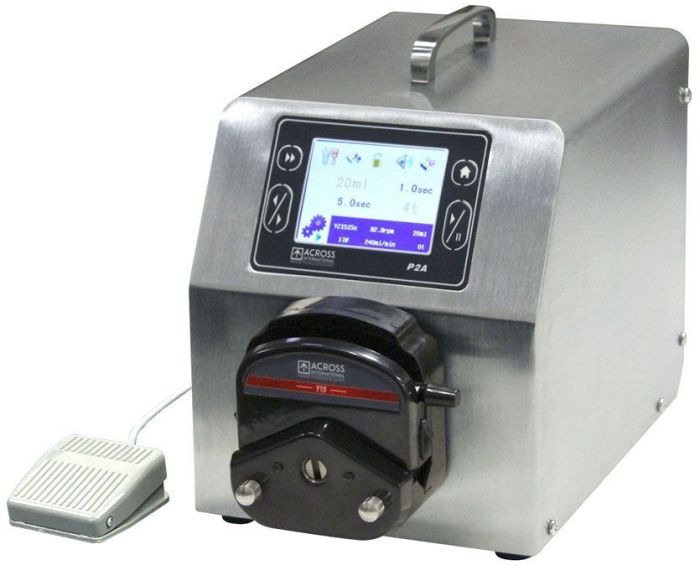

Ai P2A 2L/min SST Peristaltic Pump Touchscreen controller ETL

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing, while a rotor compresses the tube to move fluid through the system.

As the rotor turns, the compressed section of the tube pinches closed and forces the fluid forward. When the tube returns to its natural shape after the rotor passes, fluid flow is induced into the pump. This peristaltic action is commonly used for chemical dosing, fluid transfer, and bottle filling.

As low as

IN STOCK Model: P2A Delivery Time: 1-3 Weeks

Product Detail
More Information

Model	P2A
Electrical requirements	110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase, 50 watts
Power cord	110V US 3-prong (comes with purchase) 230V cord available upon request
Pumping rate	2.3L/min (0.6 gallon/min)
Max. rotation speed	600 rpm (at 0.1 rpm step)
Pump head	Y15
Max. tubing size	1/2"
Standard tubing model number	TP1M.XF
Controller	Type: color LCD, touchscreen Distribution: 0 to 9999 times Distribution timer: 0.1 second to 9999 minutes Distribution interval: 0.1 second to 9999 minutes
Fluid retainment	Pump roll back: 10 to 720 degrees (at 1 degree step) Speed: 10 to 300 rpm
Working temperature	0 to 40°C, < 80% humidity
IP rating	IP31
Communication port	Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input PLC control of pump start, stop, speed, and rotation directions
Unit/shipping dimensions (WxDxH)	7 x 13 x 9" / 12 x 19 x 13"
Unit/shipping weight	15 Lbs
Compliance	ETL tested to UL and CSA standards
Warranty	One year

Weight 10 Kg
Dimensions 15 Inch x 15 Inch x 15 Inch
