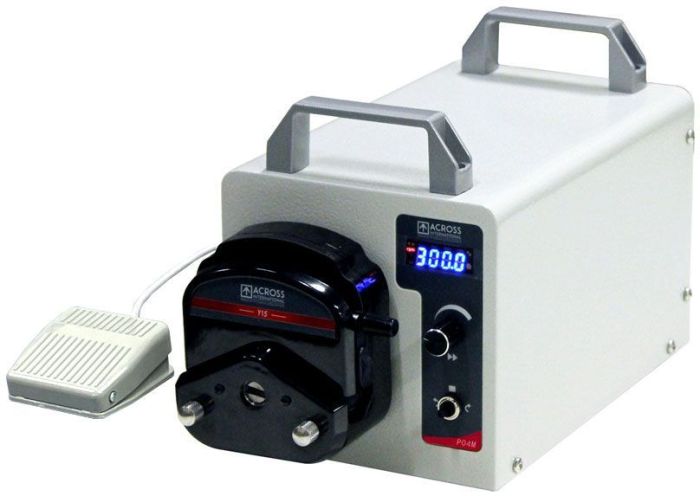

Ai P04M 0.4L/min Compact Peristaltic Pump ETL

Ai P04M 0.4L/min Compact Peristaltic Pump ETL

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing, while a rotor compresses the tube to move fluid through the system.

As the rotor turns, the compressed section of the tube pinches closed and forces the fluid forward. When the tube returns to its natural shape after the rotor passes, fluid flow is induced into the pump. This peristaltic action is commonly used for chemical dosing, fluid transfer, and bottle filling.

As low as
IN STOCK Model: P04M Delivery Time: 1-3 Weeks
 Model  P04M
 Electrical requirements  110V-230V, with auto intelligent voltage recognition
 50/60Hz, 1-Phase, 22 watts
 Power cord  110V US 3-prong (comes with purchase)
 230V cord available upon request
 Pumping rate  0.4L/min
 Max. rotation speed  100 rpm (at 0.1 rpm step)
 Pump head  Y15
 Max. tubing size  1/2"
 Standard tubing model number  TP04M.XF
 Controller  Type: analog
 Working temperature  0 to 40°C, < 80% humidity
 IP rating  IP31
 Communication port  Included: Remote on/off switch
 Optional: RS485, 0-5V, 0-10V, 4-20mA input
 PLC control of pump start, stop, speed, and rotation direction
 Unit/shipping dimensions (WxDxH)  6 x 12 x 7.5" / 10 x 15 x 10"
 Unit/shipping weight  10 Lbs
 Compliance  ETL tested to UL and CSA standards
 Warranty  One year
  • Weight 5 Kg
  • Dimensions 15 Inch x 15 Inch x 15 Inch
