Note: This model only available in 220 volt single phase.

IHG series 100 kHz to 1100 kHz high frequency induction heaters are among the latest products developed by Across International. They can quickly heat most metals that other frequencies cannot heat efficiently, including aluminum and metal powders. They can also heat parts from a distance, making them useful for fine steel wire annealing, small precision shaft quenching, hard alloy saw blade brazing, and small-batch metal powder melting.

Induction heating does not involve the external application of heat but rather the internal generation of heat in the workpiece itself. This process reduces long heating periods and enables localized, precisely timed heat input for strong efficiency and energy use.

When compared with conventional heating methods, induction heating achieves high levels of quality and efficiency across a wide range of applications.

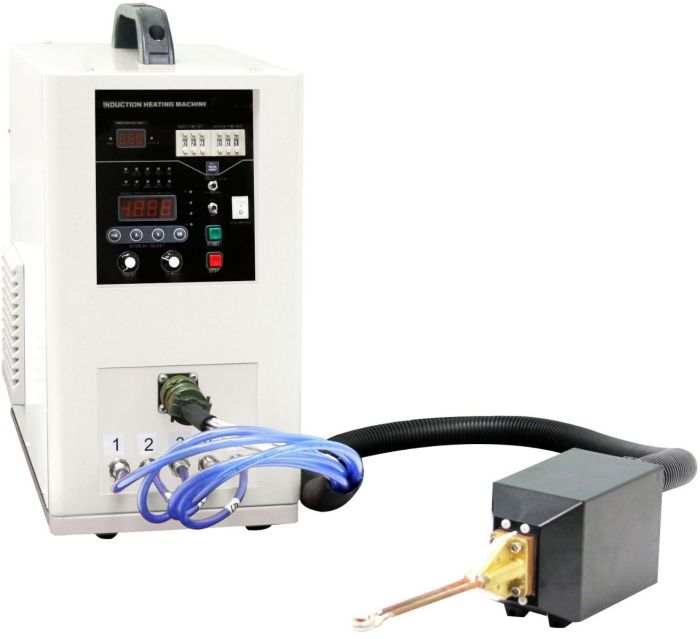

IHG06A3 Induction Heater Features

• Separated heater on a cable so it can be used by hand like a wand for added heating flexibility.
• Specially designed for heating and welding thin metal parts, blades, and melting small quantities of metallic powder with ultra-fast response.
• Light weight portable design with built-in handle, instant heat, and up to 90% energy savings.
• Easy setup: just connect power and water cooling to begin operation quickly.
• Precise control with digital output, frequency, and current displays.
• Remote foot switch for safer operation.
• Dual automatic and manual modes.
• Optional graphite and silica crucibles available depending on melting material and batch size.
• ISO 9001:2008 registered manufacturer.
• Sample testing and custom-made coils are available through Across International.

Safety Features

• Overcurrent and malfunction protections: machine shuts down and alarms if a machine part overheats, interfering signal is detected, work pieces short against induction coils, machine failure occurs, induction coils touch each other, input voltage is too low, or water pressure drops below 29 PSI.

Caution

• Always wear protective gear and goggles when operating the machine.
• Crucibles must remain covered during operation.
• Do not run no-load operation for a long period of time.
• Circulating water must be pure, clean, and below 45C.
• The machine must be properly grounded at all times.
• Thread tape or related material is prohibited during induction-coil installation.

Main Induction Furnace Specifications and Melting Capacity

Each melting cycle takes approximately 50-60 minutes for a cold furnace and 20-30 minutes for a hot furnace.
