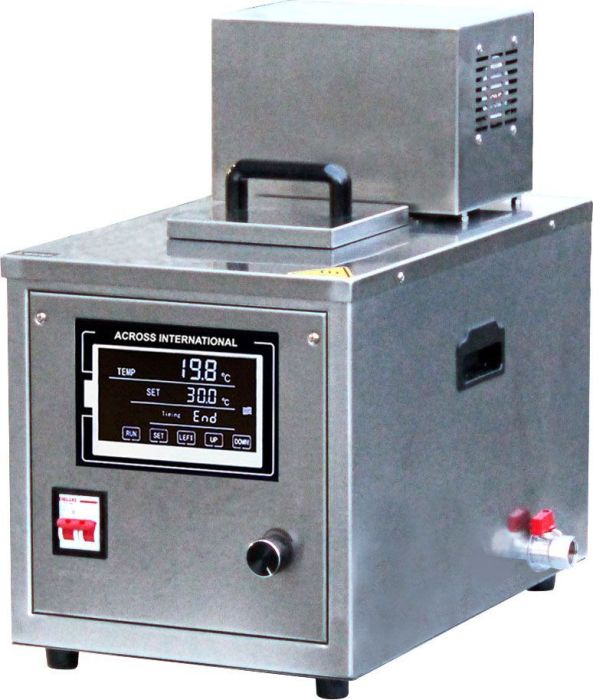

Ai 200,degreeC 7L SST Compact Desktop Heated Recirculator 220V

Ai 200,degreeC 7L SST Compact Desktop Heated Recirculator 220V

The new Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. A powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

Features

ETL tested to UL and CSA standards, powerful 2,800 watts heater, adjustable pumping speed up to 20 liters per minute, 2nd generation 7" TFT touch screen controller, front placed controller to keep electronics away from heat, ANSI standard all stainless steel reservoir, all steel construction for durability, small footprint, and 250°C rated heavy duty flexible stainless tubing with insulation.

As low as
IN STOCK Model: H200-7sst.220 Delivery Time: 1-3 Weeks
 Model  H200-7
 Temperature range  Ambient to 200°C
 Electrical requirements  220V 60Hz 1-Phase 2,900 watts
 Heating capacity  2,800 watts
 Recirculating pump  Pumping speed: 21 liters per minute, adjustable
 Maximum head: 16 feet or 5 meters
 Power: 100 watts
 Reservoir  Material: Type 304 stainless steel
 Capacity: 7 liters or 1.8 gallons
 Thermo fluid connection: M16 x 2
 Fluid drain port: 3/8" hose barb with on/off valve
 Temperature controller  Type: Digital microprocessor PID controlled
 Display: 7" touch screen
 Display unit: Celsius °C
 Temperature step: 0.1°C
 Temperature accuracy: +/- 2°C
 Temperature range: Ambient to 200°C
 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Unit/shipping dimensions  11.5 x 19 x 19" / 16 x 24 x 22" (WxDxH)
 Unit/shipping weight  35 Lbs / 50 Lbs
 Safety  Short circuit and ground protection
 Over-current protection
 Over-temperature protection
 Upper/lower temperature alarm protection
 Warranty  One year
 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
  • Weight 27 Kg
  • Dimensions 20 Inch x 17 Inch x 22 Inch
