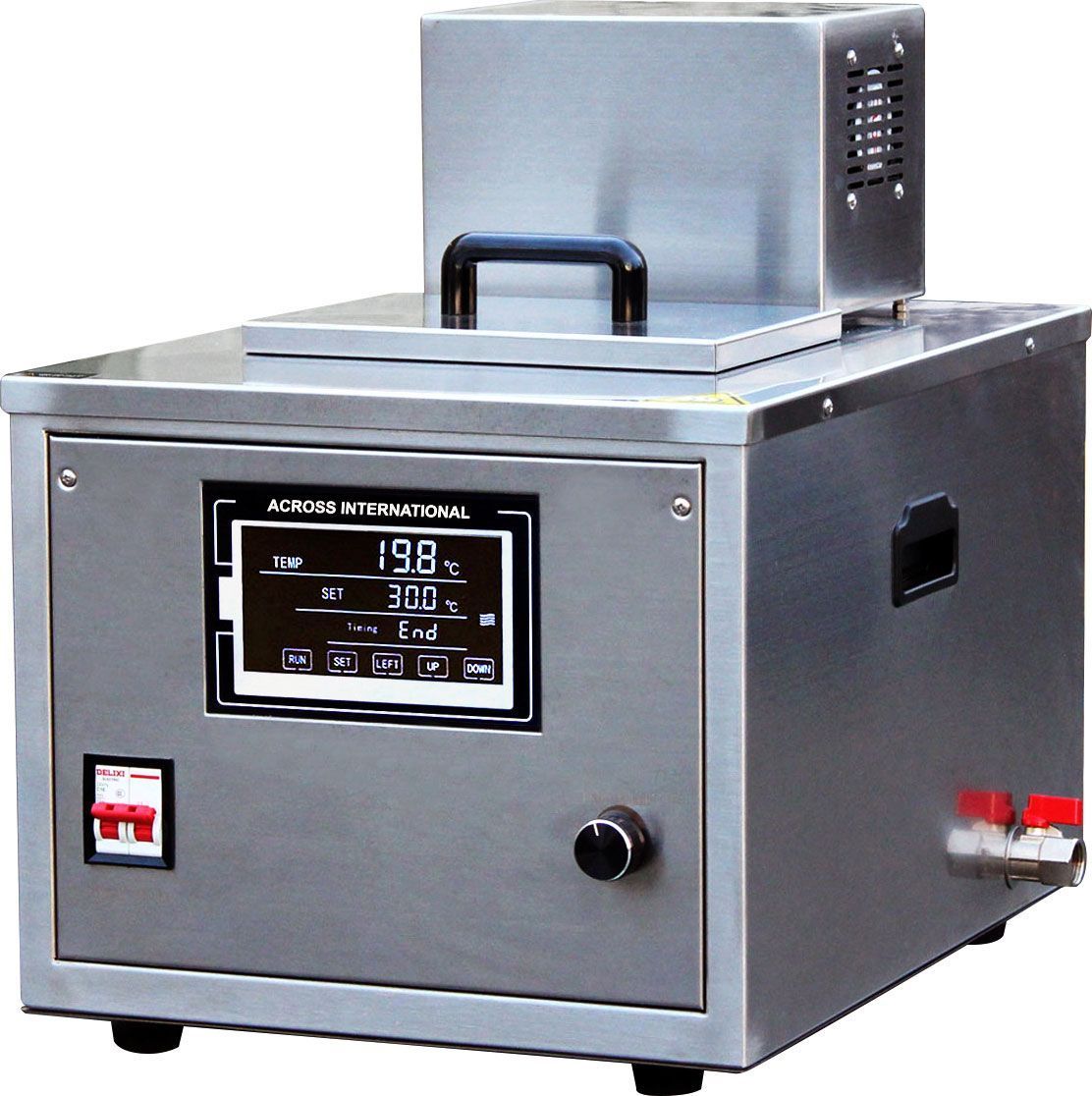

Ai 200,degreeC 15L SST Compact Desktop Heated Recirculator 220V

Ai 200,degreeC 15L SST Compact Desktop Heated Recirculator 220V

Across International lists H200-15sst.220 as the Ai 200C 15L SST Compact Desktop Heated Recirculator 220V. The live product page presents the H200 series as a compact desktop heated recirculator built for high-temperature applications with precise touch-screen PID control and a front-mounted controller that keeps electronics away from the heat.

Features

  • ETL tested to UL and CSA standards.
  • Powerful 2,800 watt heater.
  • Adjustable pumping speed up to 15 liters per minute.
  • 2nd generation 7-inch TFT touch screen controller.
  • Front placed controller keeps all electronics away from the heat and extends controller lifespan.
  • ANSI standard all stainless steel reservoir.
  • All steel construction for durability.
  • Small footprint saves valuable lab space.
  • Comes with 250C rated, heavy-duty, flexible stainless tubing with insulation.
As low as
IN STOCK Model: H200-15sst.220 Delivery Time: 1-3 Weeks

Specifications

 Model  H200-15sst.220
 Temperature range  Ambient to 200C
 Electrical requirements  220V 60Hz 1-phase, 2,900 watts
 Heating capacity  2,800 watts
 Recirculating pump  Pumping speed: 15 liters per minute, adjustable
 Maximum head: 16 feet or 5 meters
 Power: 100 watts
 Reservoir  Dimensions: 10 x 12 x 8" (WxDxH)
 Material: Type 304 stainless steel
 Capacity: 15 liters or 4 gallons
 Thermo fluid connection: M16 x 2
 Fluid drain port: 3/8" hose barb with on/off valve
 Temperature controller  Type: Digital microprocessor PID controlled
 Display: 7" touch screen
 Display unit: Celsius
 Temperature step: 0.1C
 Temperature accuracy: +/- 2C
 Temperature range: Ambient to 200C
 Working environment  -15C/5F to 25C/77F, at <66% humidity
 Unit/shipping dimensions  14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH)
 Unit/shipping weight  40 Lbs / 55 Lbs
 Safety  Short circuit and ground protection
 Over-current protection
 Over-temperature protection
 Upper/lower temperature alarm protection
 Warranty  One year
 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
  • Weight 31.5 Kg
  • Dimensions 24 Inch x 19 Inch x 22 Inch
