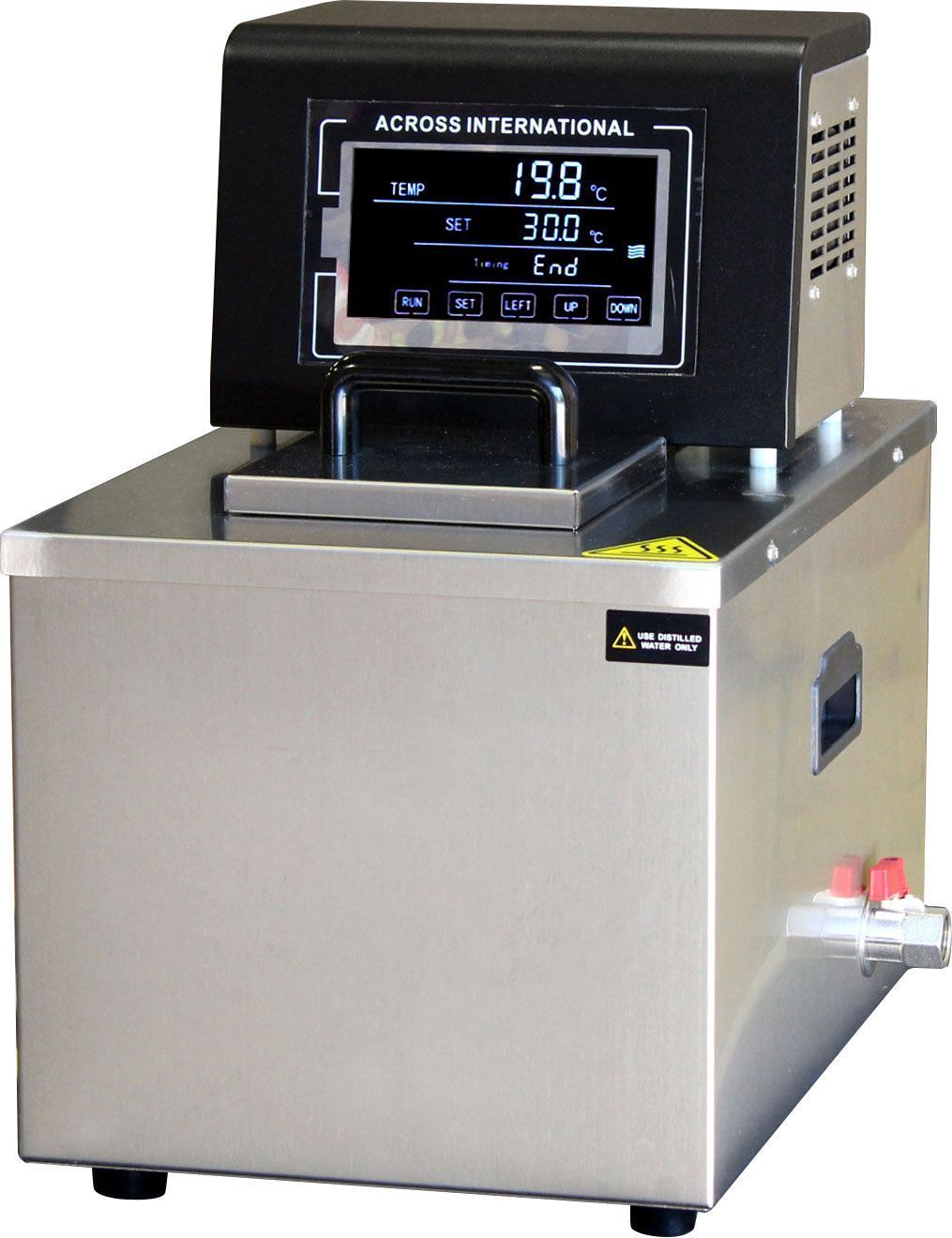

Ai 100,degreeC 7L Capacity SST Compact Heated Recirculator 220V

Ai 100,degreeC 7L Capacity SST Compact Heated Recirculator 220V

Across International lists H100-7sst.220 as the Ai 100C 7L Capacity SST Compact Heated Recirculator 220V. The live product page presents the H100 series as a high-reliability heated recirculator designed for quiet operation, constant flow, and precise temperature control with a second-generation touch-screen PID controller.

Features

  • ETL tested to UL and CSA standards.
  • Powerful 2,500 watt heater.
  • All stainless steel finish.
  • Adjustable pumping speed up to 20 liters per minute.
  • 2nd generation 7-inch TFT touch screen controller.
  • ANSI standard all stainless steel reservoir.
  • All steel construction for durability.
  • Small footprint saves valuable lab space.
  • Connection tubing included.
  • Recommended for 2L to 10L distillation systems.
As low as
IN STOCK Model: H100-7sst.220 Delivery Time: 1-3 Weeks

Specifications

 Model  H100-7sst.220
 Temperature range  Ambient to 100C (no load)
 Electrical requirements  220V 60Hz 1-phase, 2,600 watts
 Heating capacity  2,500 watts
 Recirculating pump  Pumping speed: 20 liters per minute, adjustable
 Maximum head: 16 feet or 5 meters
 Reservoir  Dimensions: 7 x 10.5 x 5.5" (WxDxH)
 Material: Type 304 stainless steel
 Capacity: 7 liters or 1.9 gallons
 Thermo fluid connection: 3/8" hose barb x 2
 Thermo fluid drain port: 3/8" hose barb with on/off valve
 Temperature controller  Type: Digital microprocessor PID controlled
 Display: 7" touch screen
 Display unit: Celsius
 Temperature step: 0.1C
 Temperature accuracy: +/- 2C
 Temperature range: Ambient to 100C
 Working environment  -15C/5F to 25C/77F, at <66% humidity
 Built-in swivel casters  No
 Unit/shipping dimensions  12 x 17 x 18" / 17 x 20 x 22" (WxDxH)
 Unit/shipping weight  30 Lbs / 36 Lbs
 Safety  Short circuit and ground protection
 Over-current protection
 Over-temperature protection
 Upper/lower temperature alarm protection
 Warranty  One year
 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
  • Weight 17 Kg
  • Dimensions 20 Inch x 16 Inch x 22 Inch
