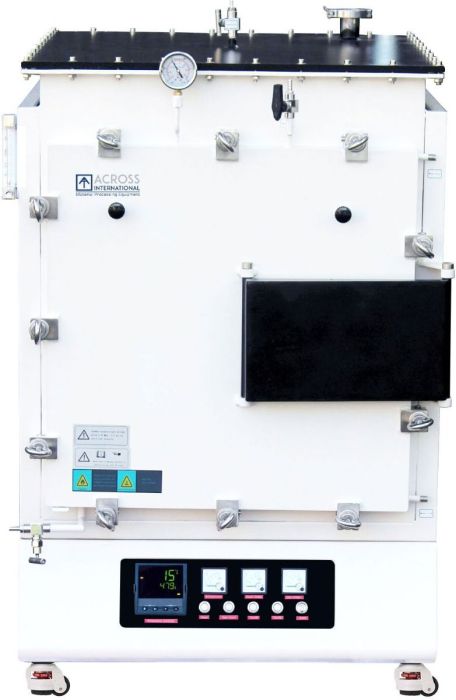

GCF1400.6.6.6 is the 6 x 6 x 6 inch chamber version of Across International's GCF1400 controlled atmosphere muffle furnace series. The live Across page describes this series as using Mitsubishi (Japan) high-quality alumina fiber insulation with silicon carbide heating elements inside a double-walled steel housing to reduce exterior heat loss.

Furnace operation is controlled by a Eurotherm or Shimaden multi-segment digital controller with built-in communications port and USB adapter, allowing PC-based remote control, monitoring, and export of test results. Across notes that these furnaces support multiple atmosphere processes in one cycle, such as binder burn-out in air followed by sintering under rough vacuum or inert gas.

Features

• Multiple gas inlets and outlets with stainless steel ball valves and flow control.
• Welded furnace chamber with leak-tested sealing and high-temperature silicone door gasket.
• Built-in stainless steel water-cooling panel to protect the door sealing gasket during heavy use.
• Microprocessor-based self-tuning PID control for stable thermal processing.
• Built-in ammeter, dual voltmeters, and computer interface for monitoring and troubleshooting.
• ETL and CE certified on the standard listing.

Important

Across notes that GCF furnaces are not designed to function as vacuum furnaces. The vacuum feature is mainly intended to pre-evacuate the chamber before introducing inert or other protective gases.
