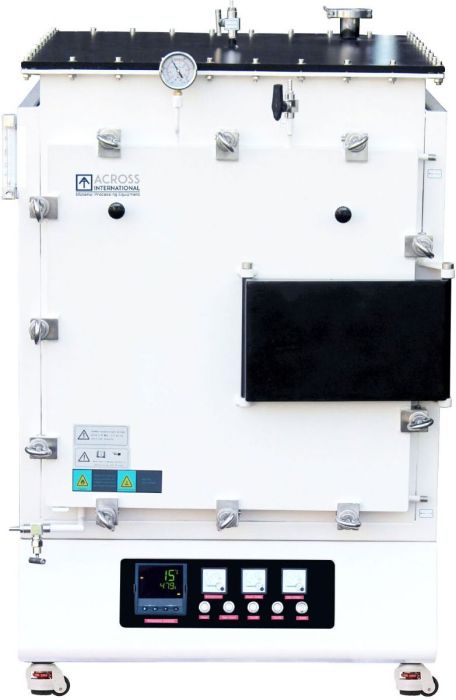

GCF1400.16.12.12 is the 16 x 12 x 12 inch chamber version of Across International's GCF1400 controlled atmosphere muffle furnace series. The live Across page describes the series as using Mitsubishi (Japan) high-quality alumina fiber insulation together with silicon carbide heating elements in a double-walled steel housing that helps reduce exterior heat loss.

Across lists Eurotherm and Shimaden multi-segment digital controller options with built-in communications and USB adapter for PC-based remote control, monitoring, and result export. The page also notes that multiple atmosphere processes can be combined in one cycle, such as binder burn-out in air followed by sintering under rough vacuum or inert gas.

Features

• Multiple gas inlets and outlets with stainless steel ball valves and flow control.
• Welded and leak-tested chamber with high-temperature silicone door gasket sealing.
• Built-in stainless steel water-cooling panel to protect the door gasket under heavy use.
• Microprocessor-based self-tuning PID control for stable thermal processing.
• Built-in ammeter, dual voltmeters, and computer interface for monitoring and troubleshooting.
• ETL and CE certified on the standard listing.

Important

Across notes that the GCF series is not designed to serve as a true vacuum furnace. The vacuum function is mainly intended for pre-evacuating the chamber before introducing inert or protective gases.
