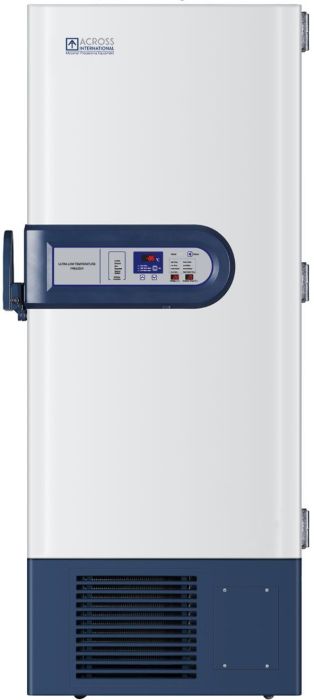

| Model | G12h |
| Electrical requirements | 120V (±10%) 60Hz 1-Phase 12A |
| Power consumption | 7.5 kW/day |
| Performance | Temperature range: -40°C to -86°C Time from ambient to -86°C: 4 hours Uniformity: ±4°C Time from -86°C to -50°C with door close at 25°C ambient: 3.5 hours |
| Controller | Style: microcomputer controlled with analog display Range: -40°C to -86°C Step: 1°C Thermo sensor: PT100 Displays: internal temperature, ambient temperature, input voltage, error code Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working condition |
| Compressor | Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP x 2 Number of compressors: two HC refrigerants: R290 (stage 1), R170 (stage 2) |
| Chamber | Dimensions: 18.3 x 24.8 x 45.9" (WxDxH) Material: powder coated steel Capacity: 12 Cu Ft Insulation: VIP (Vacuum Insulated Panel) 5x5x2" cryo box capacity: 220 |
| Shelf | Comes with unit: 3, fully adjustable Dimensions: 17.8 x 23.5" (WxD) Max. capacity: 110 Lbs Material: 304 stainless steel |
| Door and gasket | Inner door: two, each with one sealing gasket External door: one with four sealing gaskets, lock-able |
| Communication | Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter |
| Access port | Two |
| Noise level | 50 dBA |
| Working environment | Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) Humidity: <80% Rh Altitude: <2000 m / 6561 Ft |
| Battery backup system | 48 hours (for controller display and alarms only) |
| Unit/shipping weight & dimensions | 525 Lbs / 615 Lbs 32.7 x 35.2 x 72.7" / 38 x 40 x 76" (WxDxH) |
| Safety | Compressor over-temp protection Ambient over-temp protection Compressor power surge delay protection Password protection Sensor failure protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, condenser clogging, system failure alarms External door with lock |
| Compliance | UL 61010-1 CSA C22.2 Energy Star |
| Warranty | 2-year full service, 5-year parts, 10-year compressor |
- Weight 302.5 Kg
- Dimensions 34 Inch x 35 Inch x 80 Inch
