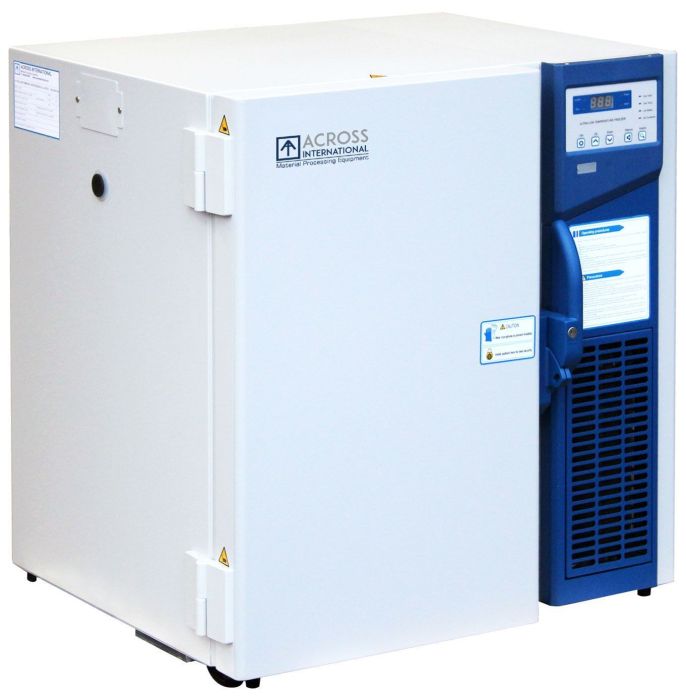

Ai RapidChill 4 CF -86,degreeC Stackable Ultra low Freezer UL 110V

Ai RapidChill 4 CF -86,degreeC Stackable Ultra low Freezer UL 110V

The Ai RapidChill series -86°C ultra-low upright ULT freezers are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Features

CDC and VFC compliant for storage of vaccines, DNA, RNA, virus samples, organs, and serum; VIP insulation; HC refrigeration system; remote alarm and RS-485 with optional 4-20mA transmitter; door lock and multiple alarm protections; digital temperature display with microprocessor-based controller; stainless steel interior; dual silicone sealing gaskets; 48-hour battery backup; quiet operation; built-in swivel casters with leveling feet; and compliance with UL 61010-1 and CSA C22.2 standards.

As low as
IN STOCK Model: G04h Delivery Time: 1-3 Weeks
 Model  G04h
 Electrical requirements  110V (+/-10%) 60Hz 1-Phase 680W 6A
 Power consumption  5.5 kW/day
 Performance  Temperature range: -40°C to -86°C
 Time from ambient to -86°C: 4 hours
 Uniformity: ±4°C
 Time from -86°C to -50°C with door closed at 25°C ambient: 2 hours
 Controller  Style: microcomputer controlled with analog display
 Range: -40°C to -86°C
 Step: 1°C
 Thermo sensor: PT100
 Displays: internal temperature, ambient temperature, input voltage, error code
 Indicators: locked, running, power, alarm, door open, over temperature, battery low, condenser clean
 Compressor  Make: SECOP (formerly Danfoss), Germany
 Style: direct cooling
 Power: 115V 60Hz 1-PHASE, 0.54HP
 Number of compressors: one
 HC refrigerants: R600A, R1150 and R50
 Chamber  Dimensions: 13 x 19.5 x 24.5" (WxDxH)
 Material: powder coated steel
 Effective capacity: 3.5 Cu Ft
 Insulation: VIP (Vacuum Insulated Panel)
 5x5x2" cryo box capacity: 60
 Shelf  Comes with unit: one adjustable shelf (2 compartments)
 Material: 304 stainless steel
 Door and gasket  Inner door: two, stainless steel
 External door: one, with four layers of silicone sealing gaskets, lock-able
 Access port  One
 Noise level  46 dBA
 Communication  Standard: RS-485, USB (stores 15 years of data for compliance purpose)
 Optional: 4-20mA transmitter
 Working environment  Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
 Humidity: <80% Rh
 Altitude: <2000 m / 6561 Ft
 Battery backup system  48 hours (for controller display and alarms only)
 Unit/shipping weight & dimensions  240 Lbs / 300 Lbs
 30 x 26 x 32" / 33 x 29 x 35" (WxDxH)
 Safety  Compressor over-temp protection
 Ambient over-temp protection
 Compressor power surge delay protection
 Password protection
 Sensor failure protection
 Over-temperature and low-temperature protection
 Power failure protection
 Low battery, door open, condenser clogging, system failure alarms
 External door with lock
 Ground protection
 Compliance  UL 61010-1
 CSA C22.2
 Warranty  2-year full service, 5-year parts, 10-year compressor
  • Weight 150 Kg
  • Dimensions 33 Inch x 29 Inch x 39 Inch
