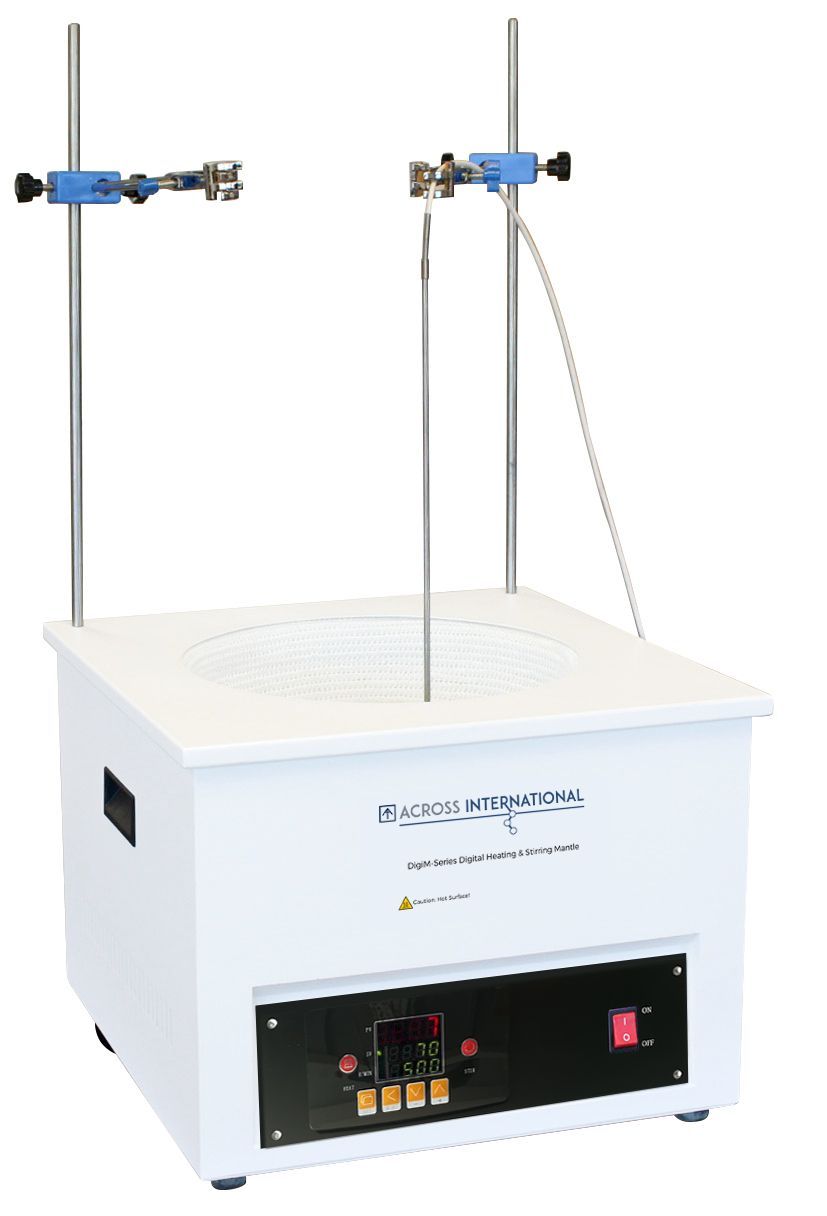

Ai DigiM 10L 300,degreeC 2000 RPM Digital Heating & Stirring Mantle

Ai DigiM 10L 300,degreeC 2000 RPM Digital Heating & Stirring Mantle

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors caused by heat are released into your work environment.

As low as
IN STOCK Model: DigiM10 Delivery Time: 1-3 Weeks

Specifications

 Model  DigiM10
 Electrical requirements  110V 60Hz 1-Phase, 2050 watts, 24A
 or
 220V 50/60Hz 1-Phase, 2050 watts, 12A
 Heating  Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 1200 rpm
 Motor power: 40 watts
 Motor type: brushless DC motor
 Controller  PID control with digital temperature and rotation speed display
 External thermocouple  Type: PT100
 Cable length: 43 inches
 Stainless steel probe length: 15 inches
 Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 10 liters
 Top opening diameter: 11.75 inches
 Depth: 6.5 inches
 Dimensions (WxDxH)  Unit: 18 x 17.5 x 13 inches, shipping: 22 x 21 x 18 inches
 Weight  Unit: 30 lbs, shipping: 40 lbs
 Safety  Thermocouple failure protection
 Certification  ETL tested to UL and CSA standards (optional), CE (standard)
 Warranty  One year
  • Weight 20 Kg
  • Dimensions 15 Inch x 15 Inch x 15 Inch
