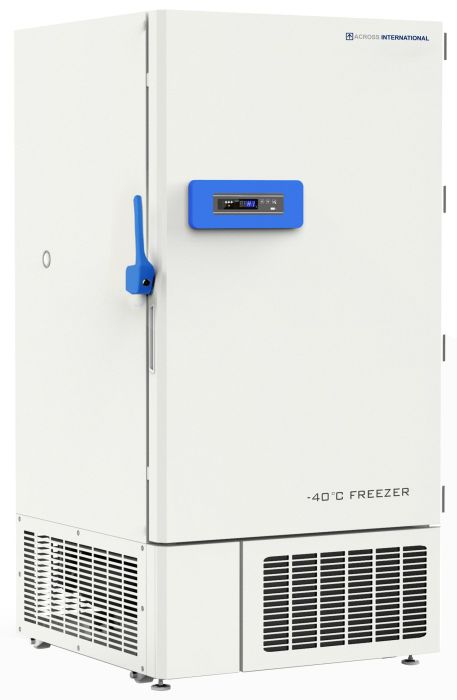

| Model | D27 |
| Electrical requirements | 110V (±10%) 60Hz 1-Phase, 1,320W, 12A |
| Performance | Temperature range: -20°C to -40°C Time to reach -40°C: 4 hours |
| Compressor | Make: SECOP Number of compressor: two Style: parallel Refrigerant: R507 |
| Chamber | Dimensions: 34 x 27.5 x 51" (WxDxH) Material: 304 stainless steel Capacity: 27.1 Cu Ft |
| Shelf | Comes with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 33 x 26 inches Additional shelf unit price: $150 |
| Door and gasket | Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able |
| Working environment | Temperature: 16°C to 32°C Humidity: <80% Rh Altitude: <2000 m / 6561 Ft Stable, well-ventilated platform with no excessive dust Keep freezer at least 12 inches from any walls or ceiling Use dedicated power, do not share outlet Extension power cable should be less than 10 feet Freezer and power outlet should be grounded properly Avoid direct sunlight, water spill, and outdoor use Clean condenser fins and remove frost inside chamber at least once a month |
| Battery backup system | 72 hours (for controller display and alarms only) |
| Access port | Two, one on the side and one in the back, one inch diameter |
| Communication | Remote alarm, 4-20mA transmitter, USB, RS-485 |
| Built-in swivel casters | Four, with two leveling feet |
| Noise level | 52 dBA |
| Unit/shipping weight & dimensions | 635 Lbs / 866 Lbs 47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |
| Warranty | One year |
- Weight 433 Kg
- Dimensions 51 Inch x 46 Inch x 85 Inch
