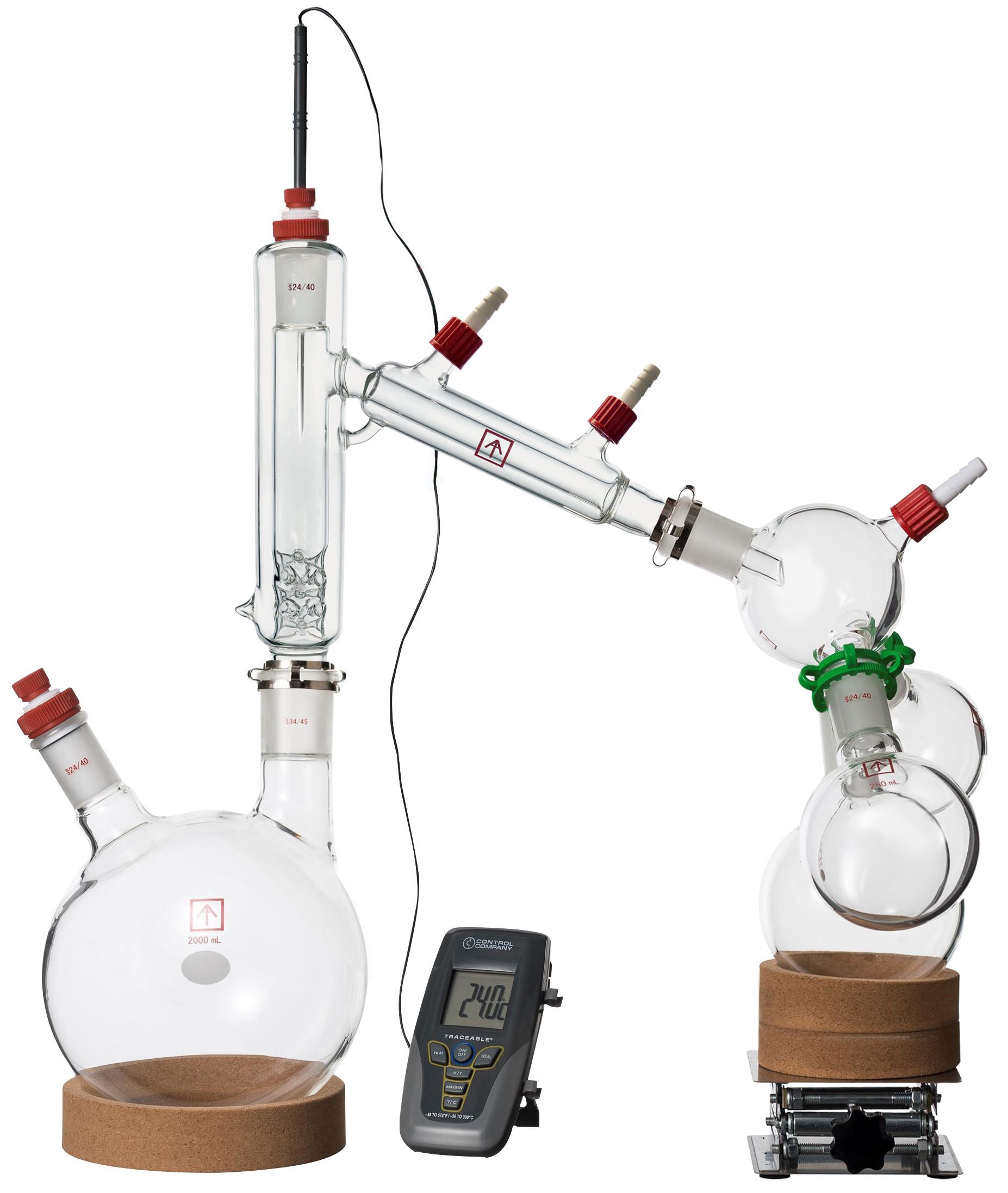

Ai 2L Short Path Distillation Kit with Multiple Receiving Flasks

Ai 2L Short Path Distillation Kit with Multiple Receiving Flasks

Features

  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • PTFE 24/40 thermo inlet adapters with Viton gaskets.
  • Ai heavy wall glassware for durability.
  • Vacuum jacketed vapor channel.
  • Thermo port on distillation head: 24/40 joint.
  • Thermo port on boiling flask: 24/20 joint.
  • Boiling flask to distillation head: 34/45 joint.
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb.
  • Glass material: high borosilicate glass 3.3.
  • Shipping dimension and weight: 27 x 22 x 9 inches, 14 lbs.

Warranty

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

As low as
IN STOCK Model: Clear2 Delivery Time: 1-3 Weeks

Clear2 Standard Package

 Part description  Quantity
 Ai heavy wall, vacuum jacketed, distillation head with multiple sets of vigreux, cooling channel, and a temperature probe port  1 pc
 Ai heavy wall round bottom 2-neck flask with one 34/45 vertical center neck and one 24/40 angled side neck  1 pc
 PTFE 24/40 joint thermometer inlet adapter with Viton gasket  2 pcs
 Ai 24/40 PennyHead glass stopper  1 pc
 Ai 24/40 joint, round-top glass feeding funnel  1 pc
 Ai 250mL distribution adapter with one 24/40 receiving flask connector and one 3/8" vacuum port  1 pc
 Ai 250mL distribution adapter with three 24/40 receiving flask connectors and one 3/8" vacuum port (can be swapped with a single cow)  1 pc
 Ai 24/40 joint, heavy wall 500mL round bottom receiving flask  2 pcs
 Ai 24/40 joint, heavy wall 250mL round bottom receiving flask  1 pc
 Ai glass 3/8" hose barb tee adapter  1 pc
 24/40 joint x 1, 34/45 joint x 1, stainless steel keck clip  2 pcs
 24/40 joint, plastic keck clip  3 pcs
 Cork ring stand (2L x 1, 500mL x 1)  2 pcs
 4 x 4" stainless steel lab jack (min. height 1.75", max height 6")  1 pc
 Dow Corning high vacuum grease 5.3 oz  1 pc
 Traceable Kangaroo digital thermometer  1 pc
  • Weight 7 Kg
  • Dimensions 27 Inch x 22 Inch x 9 Inch
