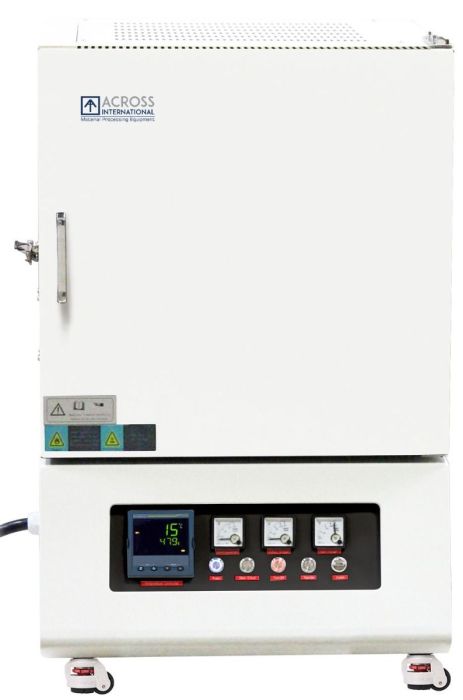

CF1750.7.6.6 is the 7 x 6 x 6 inch chamber variant from Across International's CF1750 muffle furnace series. The live Across page describes this series as a high-temperature furnace using Mitsubishi (Japan) high-grade alumina fiber insulation and molybdenum silicide heating elements for demanding thermal processing.

Furnace operation is controlled by a Eurotherm digital controller with built-in communication port for PC monitoring and remote control. Across also lists controller options ranging from the standard 3204 8-segment programmer to the optional 3504 50-segment programmer.

Features

• Microprocessor-based self-tuning PID control for stable thermal processing with minimal overshoot.
• Built-in ammeter and dual voltmeters for easier monitoring and troubleshooting.
• Built-in computer interface for remote control and monitoring.
• Long-life type B thermocouple.
• Dual-wall steel housing helps reduce heat loss to the exterior surface.

Safety

• Overheat protection shuts the furnace down if temperature moves outside the acceptable range or if the thermocouple fails.
• Power-failure protection resumes furnace operation from the interruption point once power is restored.
