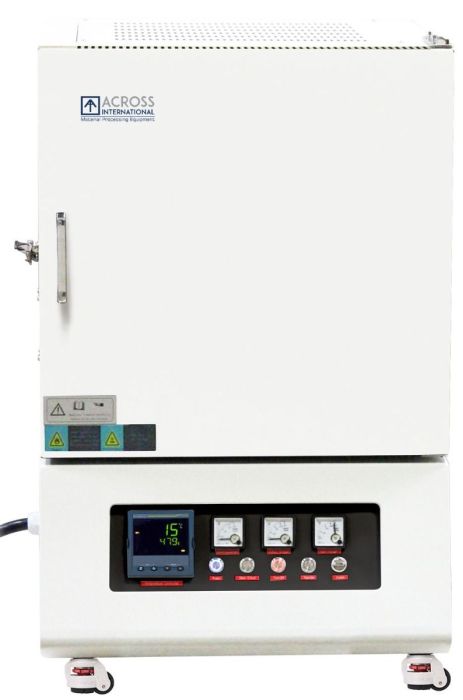

CF1750.16.12.12 is the 16 x 12 x 12 inch chamber variant in Across International's CF1750 muffle furnace series. The live Across page describes the CF1750 family as a high-temperature furnace line built with Mitsubishi (Japan) high-quality alumina fiber insulation and molybdenum silicide heating elements for demanding thermal processing applications.

The furnace is operated through a Eurotherm digital controller with built-in communication port for PC-based remote control and monitoring. Across lists the standard Eurotherm 3204 8-segment programmer and an optional Eurotherm 3504 50-segment programmer.

Features

• Microprocessor-based self-tuning PID control for stable thermal processing with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface for remote control and monitoring.
• Long-life type B thermocouple.
• Dual-wall steel housing helps reduce heat loss to the exterior surface.

Safety

• Overheat protection shuts the furnace down if temperature moves outside the acceptable range or if the thermocouple malfunctions.
• Power-failure protection resumes furnace operation after the interruption point once power is restored.
