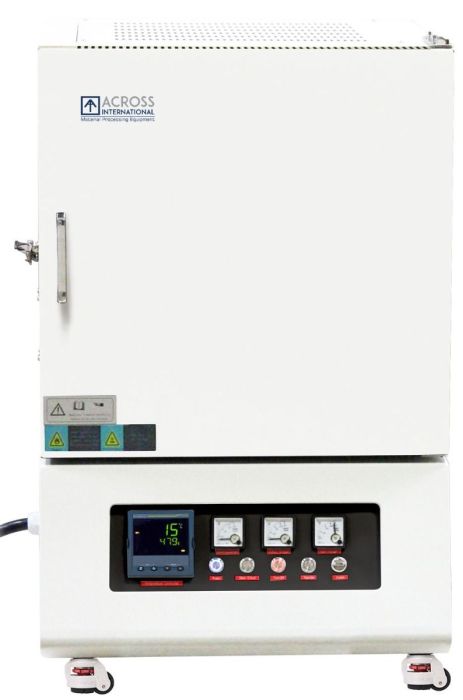

CF1750.12.8.8 is the 12 x 8 x 8 inch chamber variant from Across International's CF1750 muffle furnace series. The live Across page describes this series as a high-temperature furnace built with Mitsubishi (Japan) high-quality alumina fiber insulation and molybdenum silicide heating elements for demanding thermal processes.

The furnace is controlled by a Eurotherm digital controller with built-in communication port for PC monitoring and remote control. Across lists the standard Eurotherm 3204 8-segment programmer and an optional Eurotherm 3504 50-segment programmer for more advanced ramp-and-dwell programming.

Features

• Microprocessor-based self-tuning PID control for stable heating with minimal overshoot.
• Built-in ammeter and dual voltmeters for monitoring and troubleshooting.
• Built-in computer interface for remote control and monitoring.
• Long-life type B thermocouple.
• Dual-wall steel housing helps minimize heat loss to the outer surface.

Safety

• Overheat protection shuts the furnace down if temperature moves outside the acceptable range or if the thermocouple fails.
• Power-failure protection resumes operation from the interruption point after power is restored.
