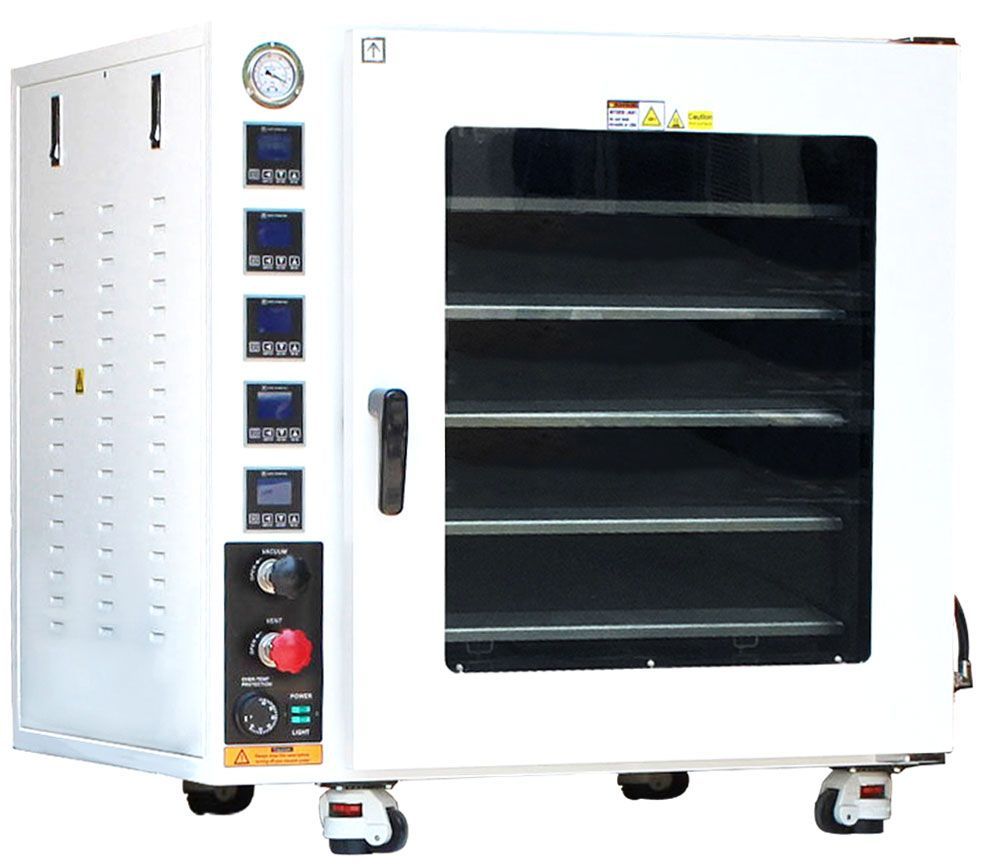

316L SST 250C UL Certified 7.5 CF Vacuum Oven w/ 5 Shelves & SST Tubing

316L SST 250C UL Certified 7.5 CF Vacuum Oven w/ 5 Shelves & SST Tubing

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new UL certified 5-shelf 7.5 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty.

With our new internal shelf heating technology, each shelf in these lab ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum drying ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

  • UL certified.
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
  • 4th gen low proportional gain temperature controllers keep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside the oven.

As low as
IN STOCK Model: AT75a-UL Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electric  110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
 or
 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
 Heater  300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient
 and uniform heating
 Chamber  Size: 22 x 23.5 x 25"
 Material: Stainless steel
 Capacity: 7.5 cubic feet
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 45 minutes
 Warm-up time to 480°F: 2 hours 15 minutes
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 410 Lbs, shipping: 630 Lbs
 Dimensions (WxDxH)  Unit: 34.5 x 33 x 35.5"
 Shipping: 42 x 38 x 43"
 Shelves  Heated shelves: 5 non-removable aluminum shelves, 22 x 23.25" (WxD) each
 Optional stackable aluminum shelves: 22 x 23.25 x 2.25" (WxDxH)
 Total area without stackable shelves: 512 x 5 = 18 sq ft or 2560 sq inch
 Total area with 5 stackable shelves: 512 x 10 = 36 sq ft or 5120 sq inch
 Distance between shelves (without stackable shelves): 4.5 inches
 Distance between shelves (with 5 stackable shelves): 2.25 inches
 Max. load capacity per shelf: 20 Lbs
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED
 Warranty  2 years
 Compliance  UL (E482564), CE
  • Weight 320 Kg
  • Dimensions 40 Inch x 39 Inch x 43 Inch
