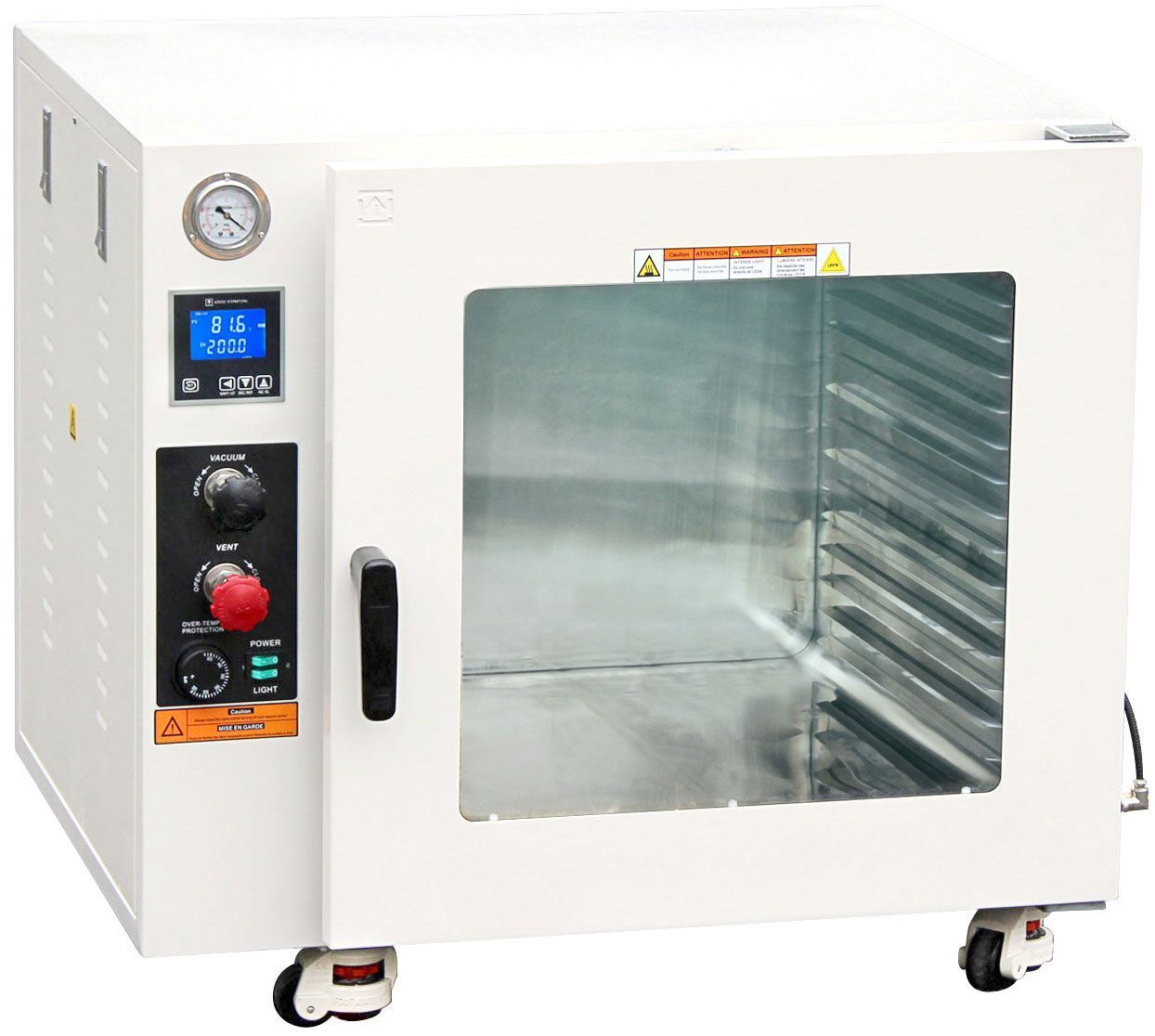

316L SST 250C UL 14 Shelf Max 5 Cu Ft 5 Sided Heating Vacuum Oven

316L SST 250C UL 14 Shelf Max 5 Cu Ft 5 Sided Heating Vacuum Oven

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 7 shelves.

Introducing the Ai 14-shelf capacity 5 sided wall-heating 5.0 cu ft vacuum ovens, come standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features

  • ETL certified to UL and CSA standards.
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • 4th gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

As low as
IN STOCK Model: AT50x-UL-316L Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electric  110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
 Chamber  Size: L 19.75" x W 21.5" x H 20.5"
 Material: Stainless steel
 Capacity: 5.0 cubic feet
 Heater  5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3)
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 7% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 45 minutes
 Warm-up time to 480°F: 2 hours 15 minutes
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange
 Vent port: KF25 flange
 Vacuum pump: Sold separately
 Weight  Unit: 410 Lbs, shipping: 630 Lbs
 Dimensions (WxDxH)  Unit: 32.25 x 28 x 30"
 Shipping: 38 x 37 x 38"
 Shelves  Shelf size: 19.25 x 21 x 0.5" (WxDxH)
 Material: aluminum
 Style: pan-shape
 Capacity: 14 shelves max.
 Comes standard with oven purchase: 7 shelves
 Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
 Distance between the most adjacent shelves: 1.25"
 Weight capacity  Inner Chamber Load Capacity: Recommended <250Kg
 Shelf Load Capacity: Recommended <10Kg
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED (pre-installed)
 Compliance  ETL certified to UL and CSA standards
 Warranty  2 years
  • Weight 320 Kg
  • Dimensions 40 Inch x 39 Inch x 43 Inch
